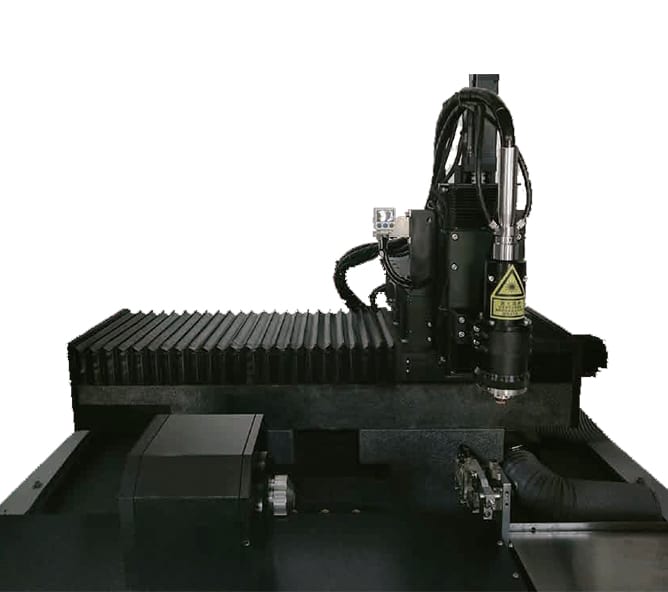

PMT Series Precision Motion Platform

Scope of application

PMT series precision motion platform is mainly used in precision laser micro- machining system, precision machining system, precision measurement system and automation system in medical, electronic, automotive, aviation, military, daily hardware and other fields, providing high-speed and high-precision motion system solutions for tools or workpieces.

Spread the love
Share this product
Product Model

YC-GPM6

YC-PMT6045

YC-PMT-G-300

YC-PMT4030

YC-PMT600-16

YC-PMT600-S-8

YC-PMT300-8



Product Characteristics
  • We can provide 1 ~ 6 axis of various types of combined precision motion platform, mainly linear axis & rotatable axis module, X θ superposition type & XY superposition type two axis motion platform, XYZ rectangular coordinate type & XYZ fixed gantry type & XYθ combined three axis motion platform, moving gantry type & XYZθ combined four axis motion platform, “XYZ + double rotation axis” or “double X + YZθ Combined” five axis motion platform”, “XYZ + three rotation axis” or “double X + YZ + double rotation axis combined” six axis motion platform, etc;
  • It can be equipped with welding steel frame base,granite platform, appearance metallic parts, laser cutting head, control system, laser micromachining software system and other open integration modules;
  • Modular design, each axis or matching clamping system, servo support are independent modules, mechanical and electrical interfaces are standardized, easy to disassemble and integrate;
  • Provide technical support and training services for mechanical, electronic control and software in precision motion control;
  • We support the customized design of non-standard precision motion platform;
Product Parameters
Technical options
Model Control system Pneumatic system Granite worktable Steel frame base Appearance sheet metal Dry cutting module Wet cutting module Feed tray module
GZH-PMT300-8 ▲ optional ▲ optional • standard configuration ▲ optional ▲ optional
GZH-PMT300-10 ▲ optional ▲ optional • standard configuration ▲ optional ▲ optional
GZH-PMT600-16 ▲ optional ▲ optional • standard configuration ▲ optional ▲ optional
GZH-PMT600-S-8 ▲ optional ▲ optional • standard configuration ▲ optional ▲ optional
GZH-PMT4030 ▲ optional ▲ optional • standard configuration • standard configuration ▲ optional
GZH-PMT6045 ▲ optional ▲ optional • standard configuration ▲ optional ▲ optional
GZH-PMT-G-3030 ▲ optional ▲ optional • standard configuration • standard configuration ▲ optional • standard configuration ▲ optional
GZH-GPM6080 ▲ optional ▲ optional • standard configuration • standard configuration ▲ optional
Technical indicators
Model Clamping range of pipe diameter Pipe clamping mode Range of motion positioning accuracy Repeat positioning accuracy resolving power No load running speed Gas supply requirements Degree of protection
GZH-PMT300-8 (P0.1mm~e7.5mm Pneumatic collet chuck 300mm (X) ±lum(X) ±0.5um(X) 0.1 um(X) 300mm/s(X) 0.6-0.8Mpa IP55
360° continuous rotation(θ) ±15arcsec(θ) ±3arcsec(θ) ±0.1 arcsec(θ) 600rpm(θ)
GZH-PMT300-10 eo.lmm~eiO.Omm Pneumatic three-jaw chuck 300mm (X) ±lum(X) ±0.5um(X) 0.1 um(X) 300mm/s(X) 0.6-0.8Mpa IP55
360° continuous rotation(θ) ±15arcsec(θ) ±3arcsec(θ) ±0.1 arcsec(θ) 600rpm(θ)
GZH-PMT600-16 d3O.lmm~016.Omm Pneumatic ER chuck 300mm (X) ±lum(X) ±0.5um(X) 0.1 um(X) 500mm/s(X) 0.6-0.8Mpa IP55
360° continuous rotation(θ) ±15arcsec(θ) ±3arcsec(θ) ±0.1 arcsec(θ) 600rpm(θ)
GZH-PMT600-S-8 (DO.lm m~07.5mm Pneumatic collet chuck 300mm (X) ±lum(X) ±0.5um(X) 0.1 um(X) 500mm/s(X) 0.6-0.8Mpa IP55
360° continuous rotation(θ) ±15arcsec(θ) ±3arcsec(θ) ±0.1 arcsec(θ) 600rpm(θ)
GZH-PMT4030 / / 400mm(X) ±3um(X) ±lum(X) ±lum(X) 0.1um(X) 300mm/s(X). IP51
300mm(Y) ±3um(Y) ±lum(Y) ±lum(Y) 0.1um(Y) 300mm/s(Y).
250mm(Z) ±3um(Z) ±lum(Z) ±lum(Z) 0.1um(Z) 50mm/s(Z).
GZH-PMT6045 / / 600mm(X) ±3um(X) ±lum(X) ±lum(X) 0.1um(X) 300mm/s(X). IP52
450mm(Y) ±3um(Y) ±lum(Y) ±lum(Y) 0.1um(Y) 500mm/s(Y)
50mm(Z) ±5um(Z) ±3um(Z) ±3um(Z) ±3um(Z) 50mm/s(Z)
Delivery and Warranty
Model quantity Company/set Delivery date/week quality guarantee period/month
GZH-PMT300-8 1 set 4~10 week 12 month
GZH-PMT300-10 1 set 4~10 week 12 month
GZH-PMT600-16 1 set 4~10 week 12 month
GZH-PMT600-S-8 1 set 8~10 week 12 month
GZH-PMT4030 1 set 8~10 week 12 month
GZH-PMT6045 1 set 8~10 week 12 month
