Precision Fiber laser marking machine

Application

Fiber optic marking machine takes advantage of long pulse width to realize marking process of thin metal sheet materials (less than 0.25mm), plastic materials, coating materials, ceramic materials, high reflective materials, dissimilar metals and other materials

High Precision Machining

Laser wavelength:

1064nm

Pulse width:

0.5ns~500ns

Beam quality:

M2≤1.5

Marking range:

50*50~300*300(mm)

Spread the love

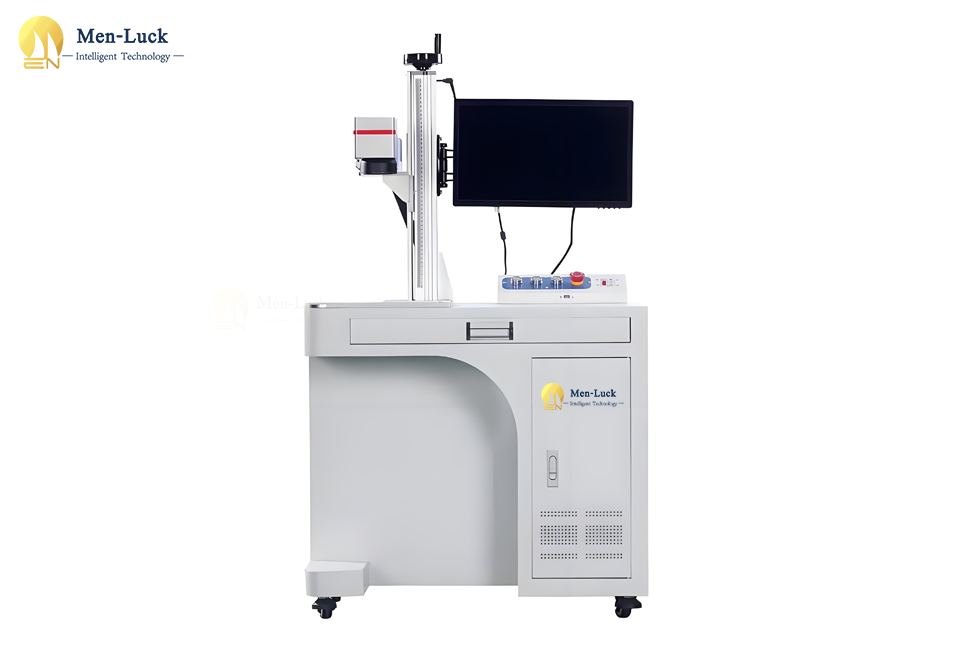

Fiber laser marking machine introduction

Fiber laser marking machine is a processing module integrated by our company using the latest generation of fiber laser technology and fiber laser with high-speed and high-precision galvanometer. The module uses nanosecond fiber laser and adopts MOPA structure. Compared with traditional fixed pulse width laser, the pulse width range is optional from 0.2-500ns, which can accurately control the heat output.

Main application:

Fiber optic marking machine can be widely used in electronic manufacturing, automotive parts, medical equipment, aerospace, jewelry and other industries. The equipment has the advantages of simple operation, low maintenance cost, long-lasting and clear marking effect.

Equipment parameters

Type Parameter	MLJG-GX20	MLJG-GX30	MLJG-GX60	MLJG-GX80
Power	20W	30W	60W	80W
Laser wavelength	1064nm	1064nm	1064nm	1064nm
Pulse width	0.5ns~500ns	2ns～350ns	2ns~500ns	2ns~500ns
Pulse repetition rate	1KHz～3000KHz	1KHz～4000KHz	1KHz～3000KHz	1KHz～3000KHz
Beam quality	M2≤1.5	M2≤1.5	M2≤1.5	M2≤1.5
Marking range	5050~300300(mm)	5050~300300(mm)	5050~300300(mm)	5050~300300(mm)
Galvanometer repetition accuracy	＜22 u Rad	＜22 u Rad	＜22 u Rad	＜22 u Rad
Fiber length	3m	3m	3m	3m
Electricity requirement	550~1000 AC220/50Hz	550~1000 AC220/50Hz	550~1000 AC220/50Hz	550~1000 AC220/50Hz
Cooling mode of whole machine	Air cooling	Air cooling	Air cooling	Air cooling
Operating environment	0~40℃	0~40℃	0~40℃	0~40℃

Strong adaptability

Precision fiber laser marking machine uses the advantages of short pulse width to handle the removal and modification of metal and non-metal materials with less heat impact and higher requirements for smoothness and fineness. Such as clocks, jewelry, mold industries, bitmap marking, coating removal, etc. Using the advantages of long pulse width, it can also realize the marking process of metal sheet materials (less than 0.25mm), plastic materials (ABS, PVC, PC, PEEK, etc.), coating materials (anodized aluminum, sprayed metal surface), ceramic materials (alumina ceramics, zirconia ceramics,) high-reflective materials (copper alloy, aluminum alloy, gold, silver), dissimilar metals and other materials.

Sample display

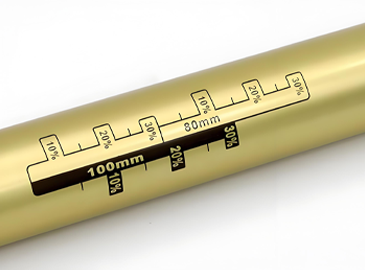

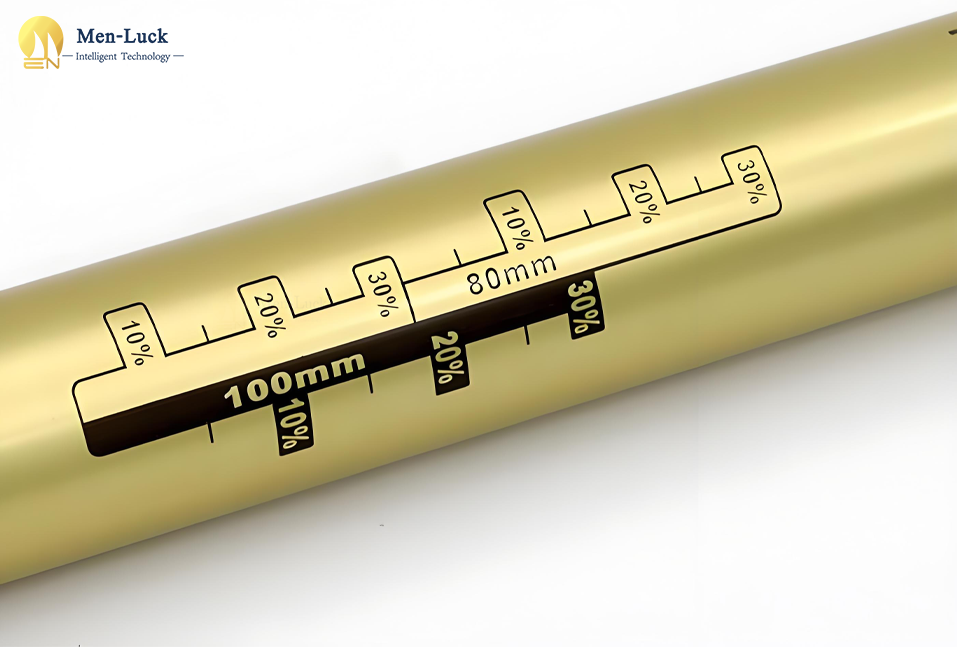

Tube metal marking

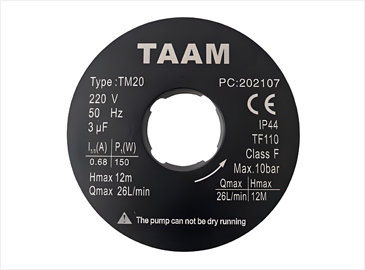

ABS marking

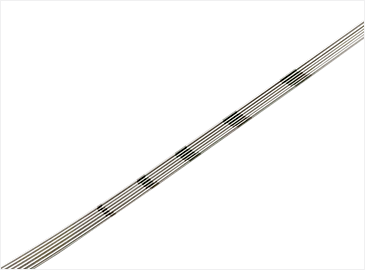

Stainless steel seapower tube marking

Flexible design

Follow the design concept of ergonomics, delicate and concise
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Open type control & laser micromachining software system is easy to operate & intuitive interface
