Precision fiber laser welding machine

Application

High Precision Machining

Laser wavelength:

1070±5nm

Frequency：

1Hz~5000Hz

Pulse width：

0.05ms~50ms

Processing area：

80mm×80mm~150mm×150mm

Spread the love

Precision fiber laser welding machine

Precision fiber laser welding machine is a high-precision and high-efficiency welding equipment, which is widely used in electronics, communications, medical equipment, aerospace and other fields. Its main features include high energy density, non-contact processing, high-precision positioning and effective control of heat-affected zone. The use of fiber laser technology can realize the welding of complex structures, which is suitable for a variety of metals and alloy materials, especially in the welding of tiny parts.

Main application

Precision fiber laser welding machine is mainly used for precision welding of various stainless steel, aluminum alloy, copper, cobalt-chromium alloy, nickel-titanium alloy, and polymer materials such as hypotubes, microcat.

Equipment parameters

Type Parameter	1070±5nm
Mode	ontinuous/Pulse；
Frequency	1Hz~5000Hz
Average power	150w
Pulse width	0.05ms~50ms
Fiber core	14μm~200μm
Processing area	80mm×80mm~150mm×150mm；
Processable materials	Stainless steel、Nickel-titanium alloy 、Platinum-iridium alloy, etc.；
CCD positioning accuracy	±15um
XY axes Repeatability accuracy	±0.002mm
Z-axis positioning accuracy	±0.005mm
Rotary axis	Maximum rotation speed: 200rpm； Jitter：20um；
Software	Self-developed dedicated welding software；
Air pressure	0.5MPa~0.7MPa
Power supply	220V single-phase/50Hz
Cooling method	Air-cooled
Maximum outer dimensions	1200mm × 1700mm × 2100mm
Stage weight	750KG
Ambient temperature	23℃±2℃
Ambient humidity	<70% RH without condensation

Strong adaptability

Precision fiber laser welding machine is a high-precision and high-efficiency welding equipment, which is widely used in electronics, communications, medical equipment, aerospace and other fields. It uses fiber laser technology can realize the welding of complex structures, which is suitable for a variety of metals and alloy materials, especially in the welding of tiny parts.

Sample display

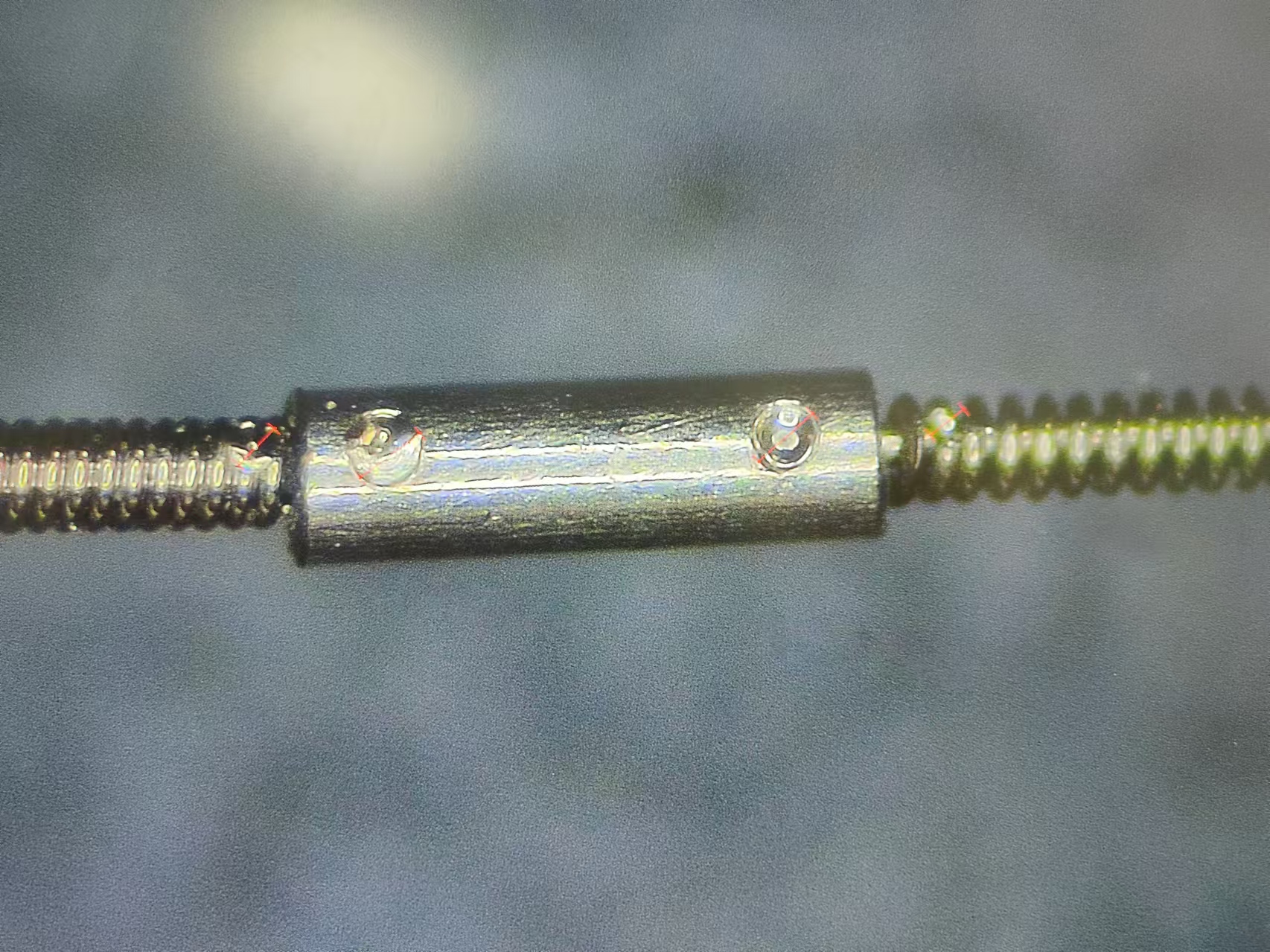

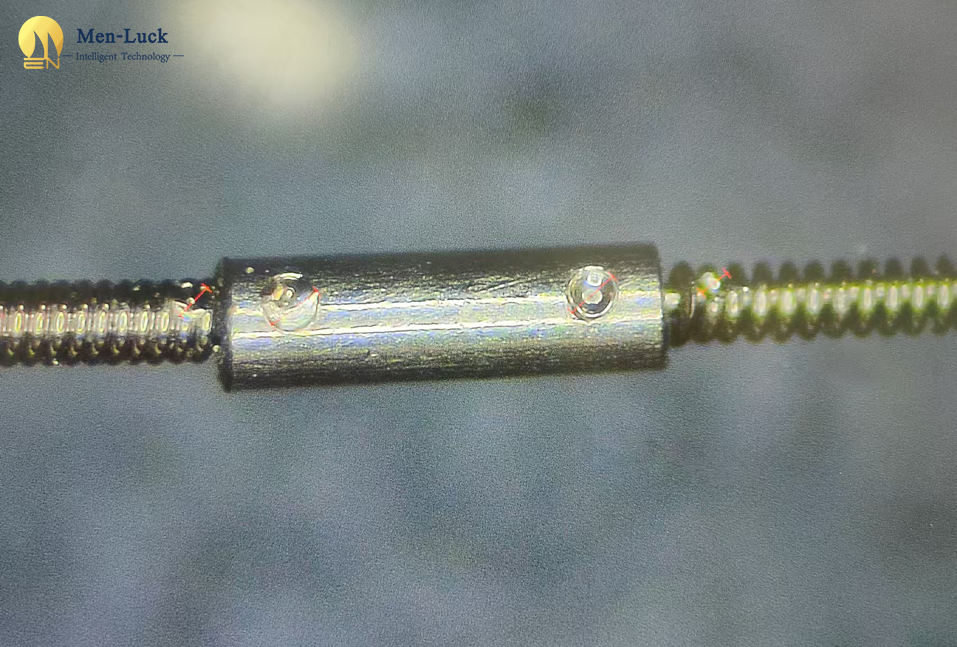

Nickel-titanium spring wire end sealing end welding

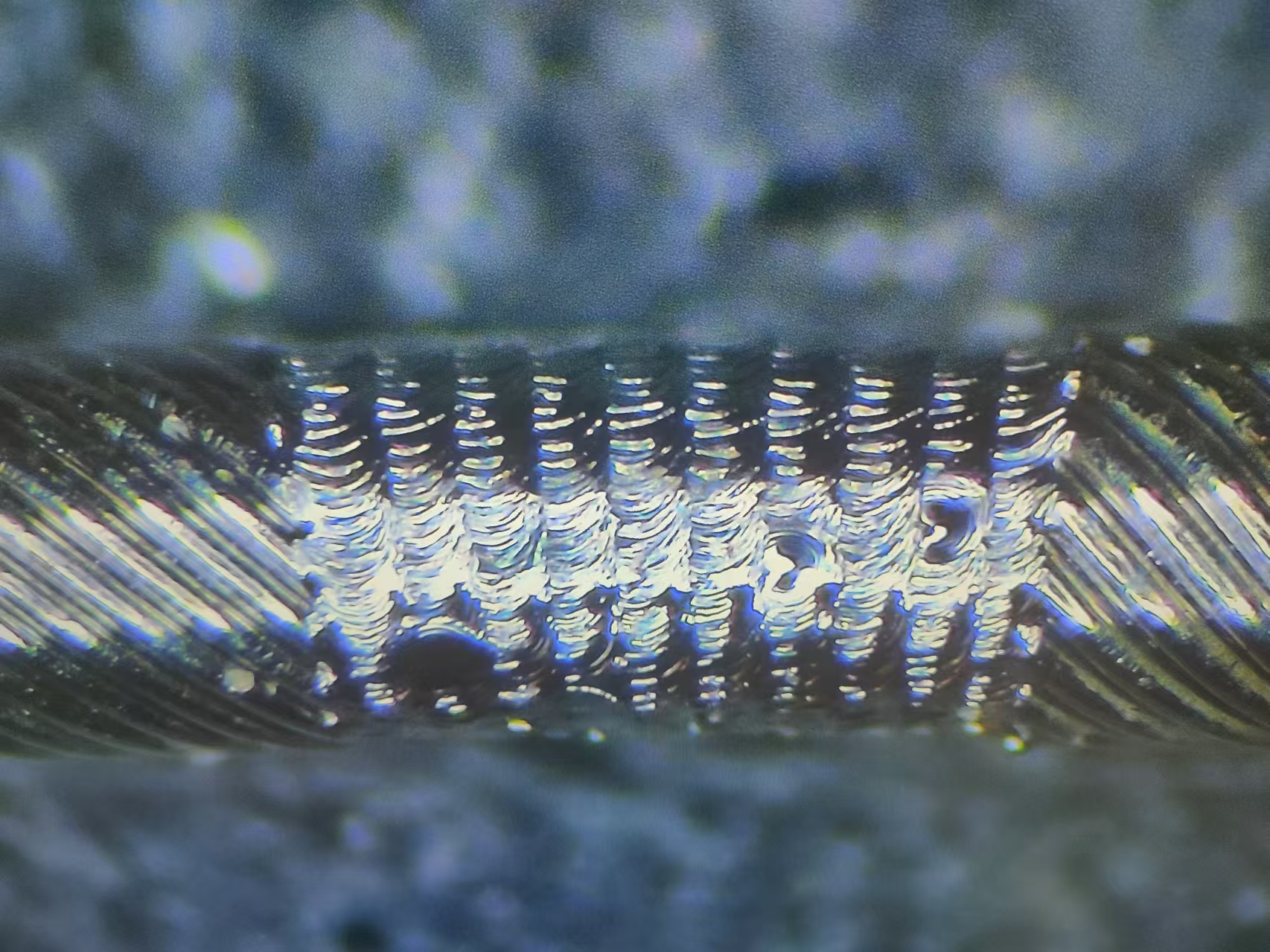

Metal push rod circumference welding

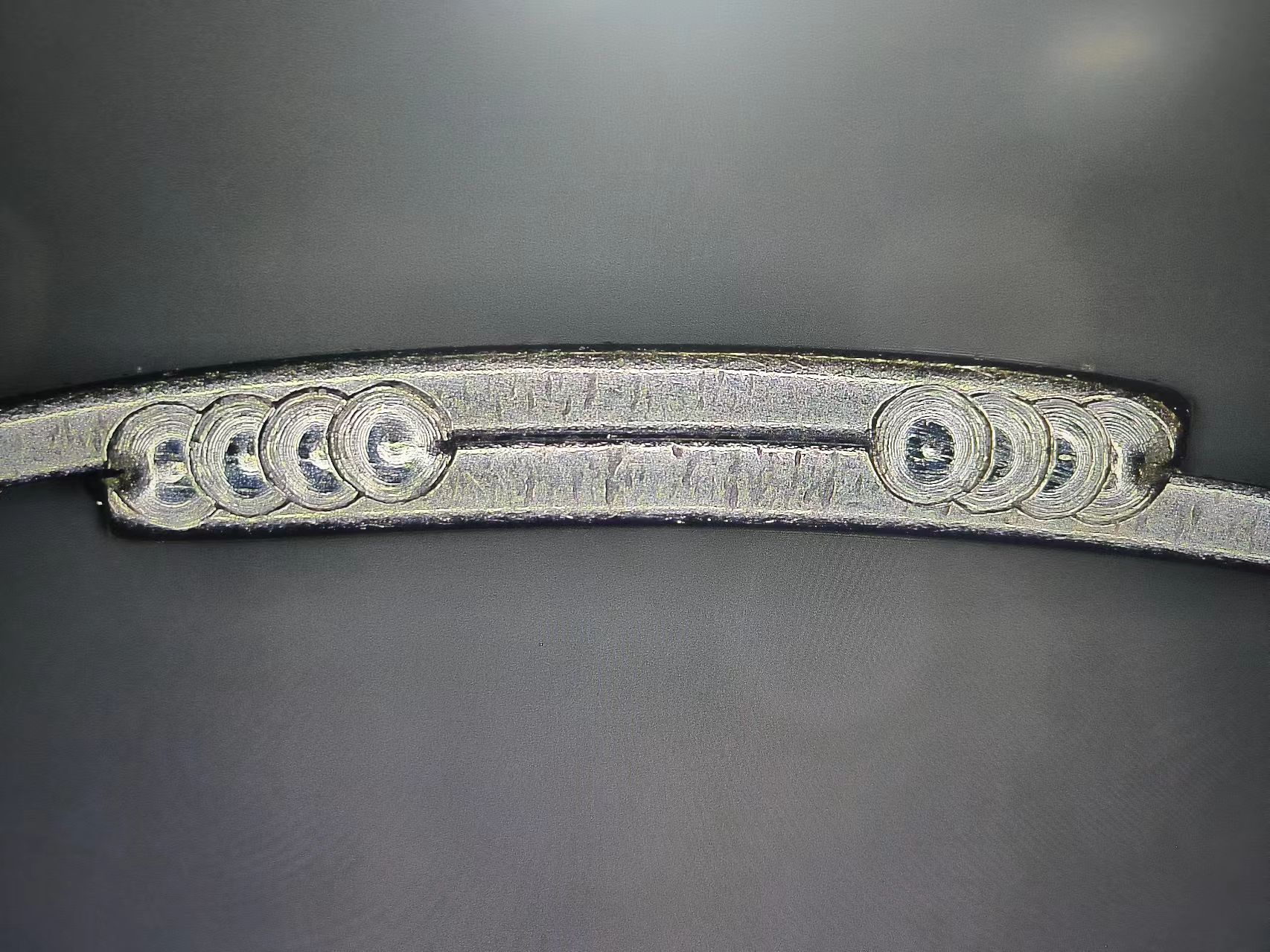

Cobalt chrome side welding

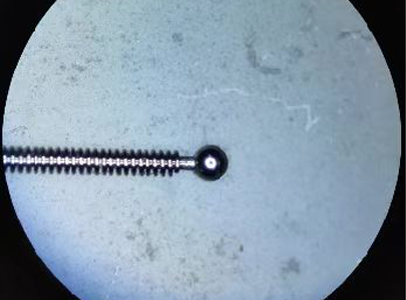

Ni-ti wire end melt ball

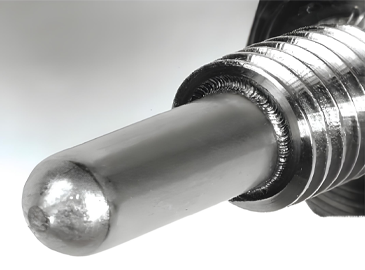

Sensor joint welding

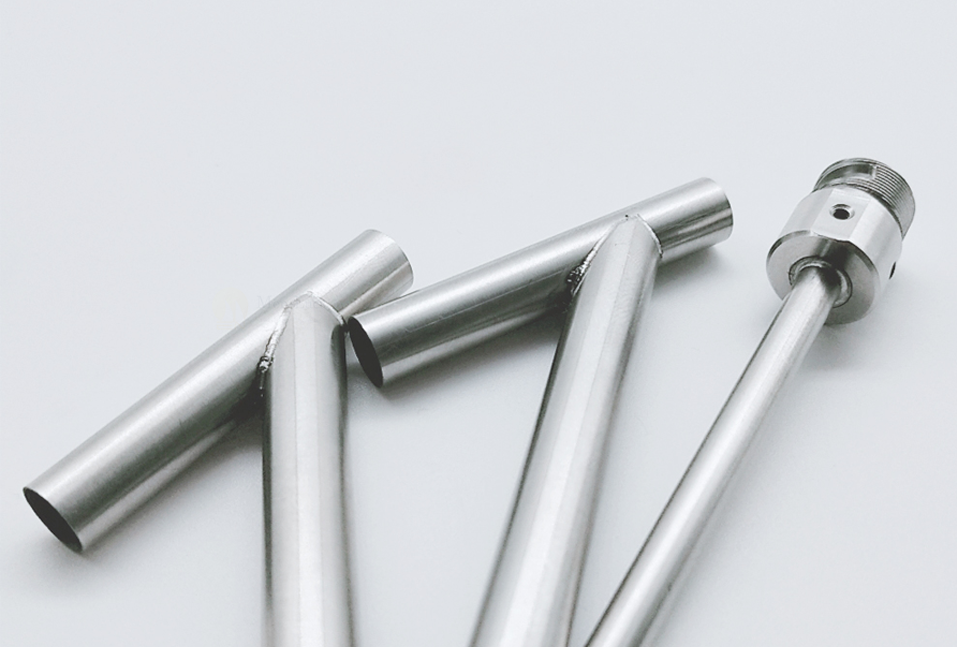

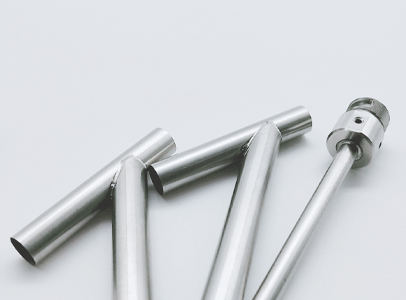

Stainless steel pipe body welding

Flexible design

Precision fiber laser welding machine has pulse or continuous dual mode optional;
The heat input during laser welding is small, and the heat-affected zone is extremely small；
Laser welding system has an advanced visual observation system and CCD visual monitoring system (optional)；
which can accurately control the size of the weld spot to ensure real-time, fast and accurate precision welding of micro metal and plastic parts;
