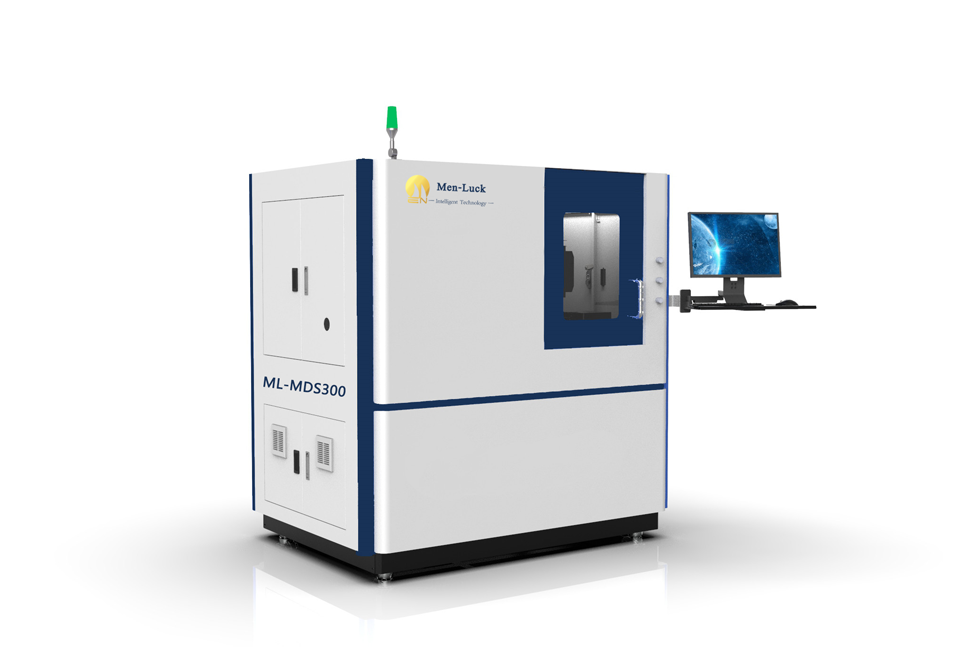

Description of medical large stent laser cutting machine
Medical large stent laser cutting machine is mainly used for laser microprocessing of large diameter and large wall thickness precision thin-wall tubes, such as heart valves, mitral valves, peripheral, lower limbs and other large metal bare stents, large drug-coated stents. Compared with the ordinary medical stent laser cutting machine, the processing of the equipment is more malleable!
Equipment parameters
| Maximum operating speed | 300mm/s(X) ；100mm/s(Y)for option ；100mm/s（Z）；600rpm（θ）； |
|---|---|
| Positioning accuracy | ±1um（X）；±3um（Y）for option；±3um（Z）；±15arcsec（θ）； |
| Repetitive positioning accuracy | ±0.2um（X）；±1um（Y）for option；±1um（Z）；±3arcsec（θ）； |
| Cutting seam width | 15um~25um |
| Consistency of reinforcement width | <±5um |
| Machining material | 316L & Ni-Ti & L605 & Fe & Mg & Zn and other alloy materials |
| Tube blank length | <2.5m (customized support fixture) |
| Processing wall thickness | 0~1.0±0.02 mm |
| Processing tube diameter | Φ0.3~Φ16.0&Φ1.0~Φ30.0±0.02 mm |
| Single processing range | 0～300mm (longer products will be machined by segmented splicing method); |
| Laser type | Fiber laser |
| Laser wavelength | 1030-1070±10nm |
| laser power | 200W&300W&500W for option; |
| Equipment power supply | 220V± 10%, 50Hz；AC 25A (main circuit breaker); |
| File format | DXF、DWG |
| Equipment dimensions | 1600mmx950mmx1700mm |
| Equipment weight | 1500Kg |
Strong adaptability
- With large wall thickness & large diameter precision thin wall tube laser dry cutting & wet cutting & drilling & grooving and other fine processing capabilities
- Support the processing of centripetal, vertical, and composite opening features of equal diameters, reduced diameters, and planar instruments
- It can process a variety of alloy materials such as 316L&L605&Ni-Ti&Fe&Mg&Zn
- Compatible with precision D chuck, ER series chuck, three jaw chuck and other precision thin wall tube clamping system
- The combined precision thin wall tube bushing supporting system is adopted which ADAPTS shape tolerance change
- Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
- Provide precision thin-walled tube continuous automatic feed processing, automatic loading and unloading, receiving and other process automation solutions
- Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

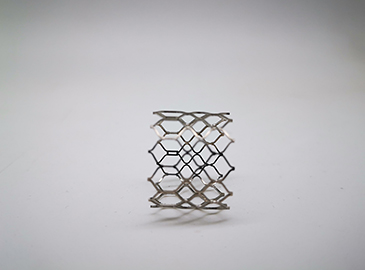

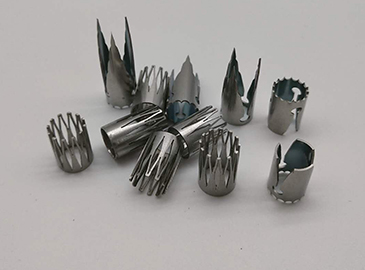

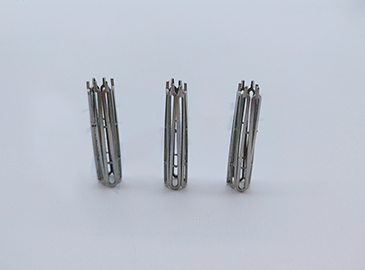

Sample display

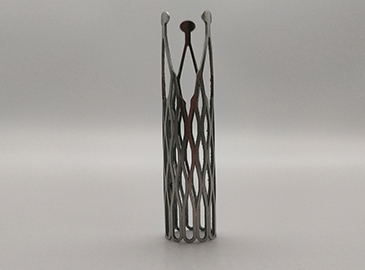

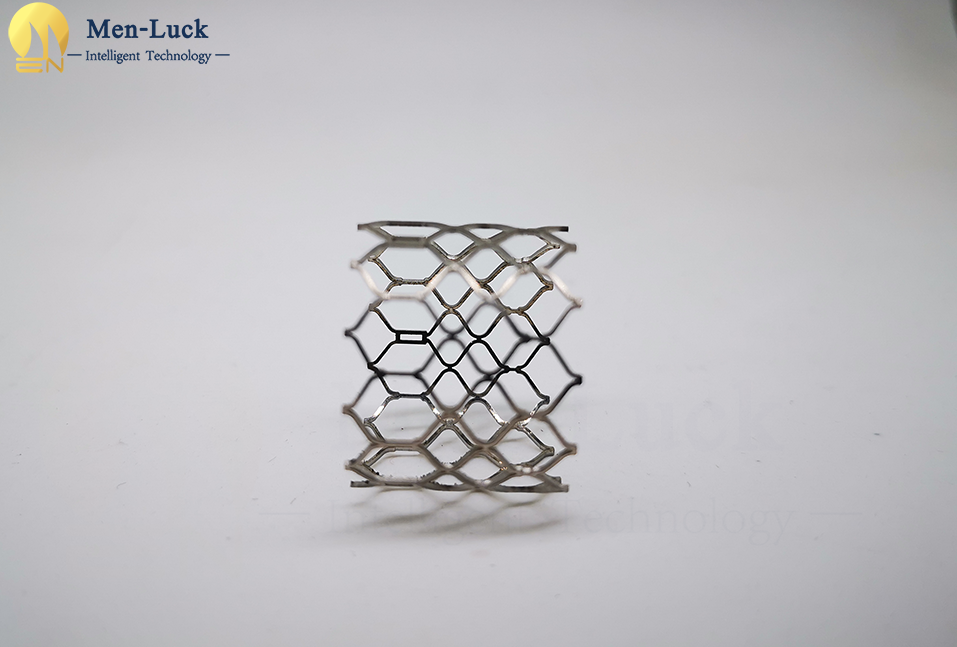

Ni-Ti&L605- Φ 23mm-WT0.5mm valve stent

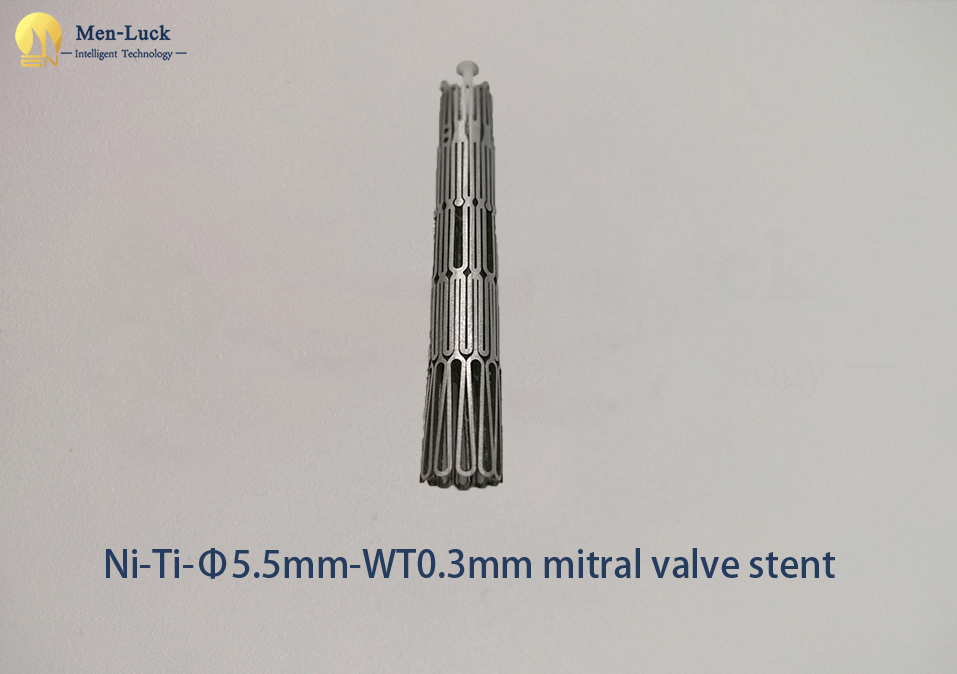

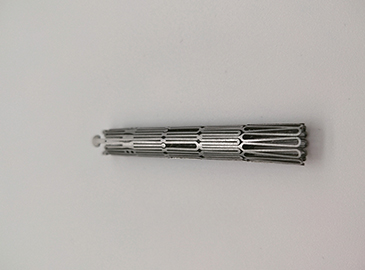

Ni-Ti- Φ 5.5mm-WT0.3mm mitral valve stent
Ni-Ti- Φ 5.5mm-WT0.3mm mitral valve stent
Ni-Ti- Φ7mm-WT0.4mm microstructure of valve stent

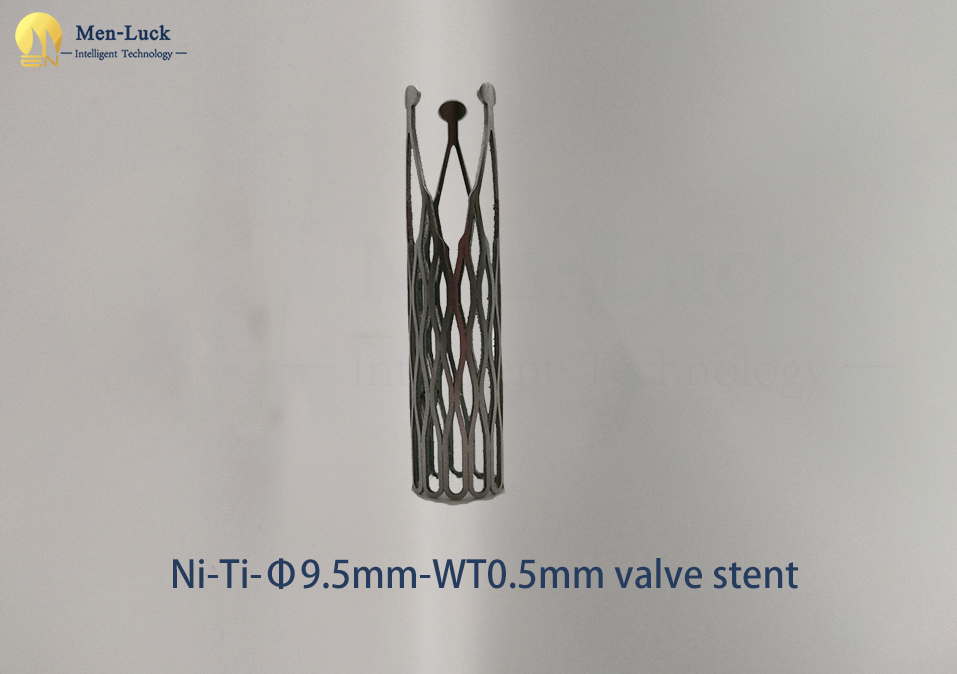

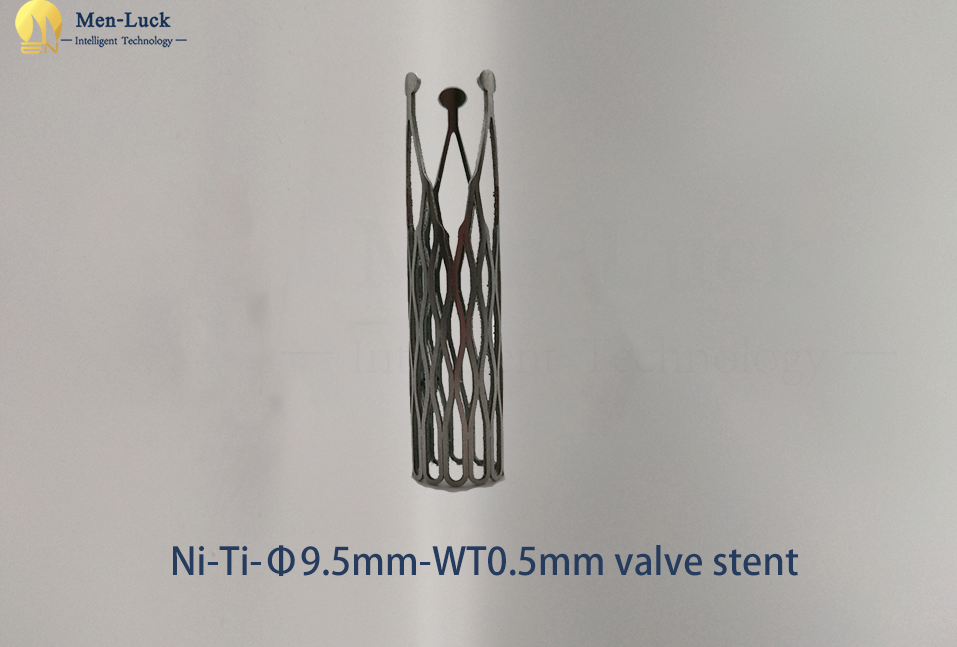

Ni-Ti- Φ 9.5mm-WT0.5mm valve stent

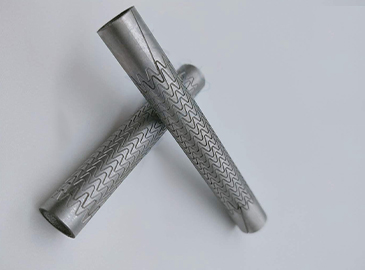

Φ 9.5mm stainless steel tube blind engraving
Flexible design
- Follow the design concept of ergonomics, delicate and concise
- Equipped with machine vision system to real time online monitor the laser dynamic machining process
- The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
- Support forward innovative design from component level to system level
- Open type control & laser micromachining software system is easy to operate & intuitive interface
