Precision Thin-walled Tube Laser Cutting Machine ML-EC300

Application

Precision thin-walled tube laser cutting machine is mainly used for stainless steel, aluminum, copper, titanium and other precision thin-walled metal round tube cutting, drilling, grooving and other laser micro processing

High Precision Machining
Small cutting seam width :

15~ 30um

High machining accuracy :

≤ ±10um

Good quality of incision :

smooth incision & small heat affected zone & less burr

High machining efficiency :

one time cutting through one side of the tube wall, continuous & automatic feeding machining

Spread the love

Precision thin-wall tube laser cutting machine

Precision thin-walled tube laser cutting machine is a kind of laser tube cutting machine, which can meet the finishing needs of dry cutting, wet cutting, drilling and slotting of stainless steel, aluminum, copper, titanium and other metal thin-walled tubes, such as needle tube, Indwelling needle, puncture needle spiral tube, puncture tube, electronic cigarette tube, etc. The equipment adopts a combined precision thin-walled tube bushing support system that adapts to changes in shape tolerances, provides continuous automatic feeding of precision thin-walled tubes, and has the advantages of high processing accuracy, good processing quality, and high processing efficiency.



Equipment parameters
Maximum operating speed 300mm/s (X) ; 50 mm/s (Z);600rpm(θ)
Positioning accuracy ±3um (X);±3um(Z); ±15arcsec (θ)
Repetitive positioning accuracy ±1um(X);±1um (Z); ±3arcsec (θ)
Cutting seam width 20um~30um
Machining material SS & Al &Cu&Ti and other metal materials
Tube blank length <2.5m(Customizable support fixture compatible with infinite tube feeding)
Processing wall thickness 0~1.5±0.02 mm
Processing tube diameter Φ0.1~Φ7.5&Φ0.3~Φ16.0±0.02 mm;
Machining range 0〜300mm (Longer products can be machined by segmented splicing)
Length of tailing 60mm
Laser type Fiber Laser
Laser wavelength 1030-1070±10nm
Equipment power supply 220V± 10%, 50Hz;AC 15A (main circuit breaker)
Laser power Optional 200W & 300W & 500W & 1000W& QCW150W
Power supply 220V±10% , 50Hz; AC 15A (Main circuit breaker)
File format DXF,DWG
Dimensions 1200mm*1300mm*1700mm
Equipment weight 1200Kg
Strong adaptability
  • Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
  • Support machining of radial opening feature of equal diameter tube
  • Can machine 304 & 316L & Ni-Ti & L605 etc. materials
  • Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
  • Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
  • Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

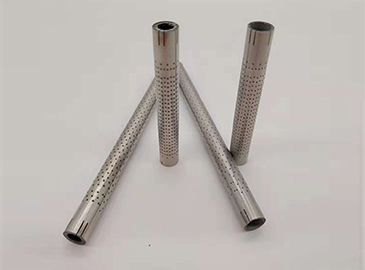

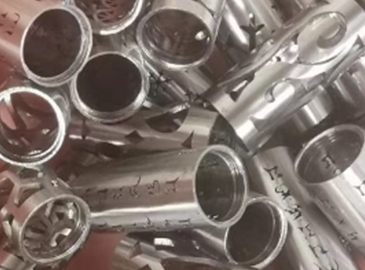

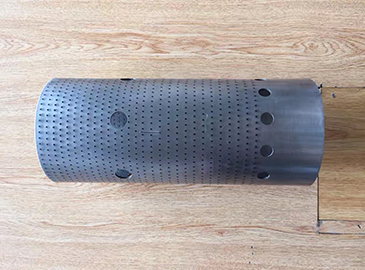

Sample display

Φ0.7 needle tube – slot width 0.3mm

Indwelling needle

Φ1.3 needle tip and hemostasis port

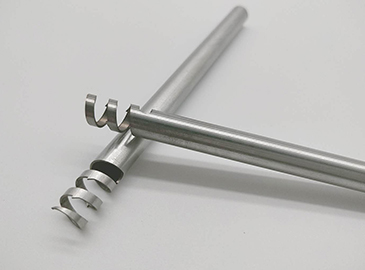

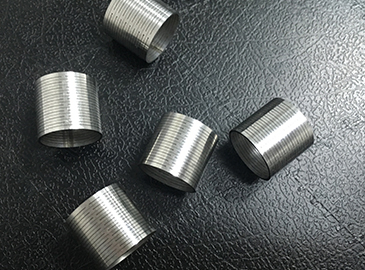

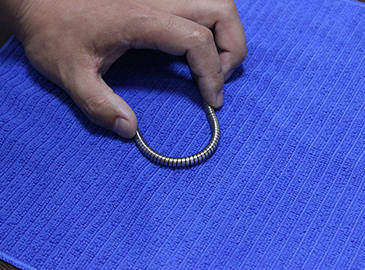

Puncture needle spiral tube

Pediatric puncture tube

Pediatric puncture tube

Flexible design
  • Follow the design concept of ergonomics, delicate and concise
  • Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
  • Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
  • The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
  • Support forward innovative design from component level to system level
  • Open type control & laser micromachining software system is easy to operate & intuitive interface
