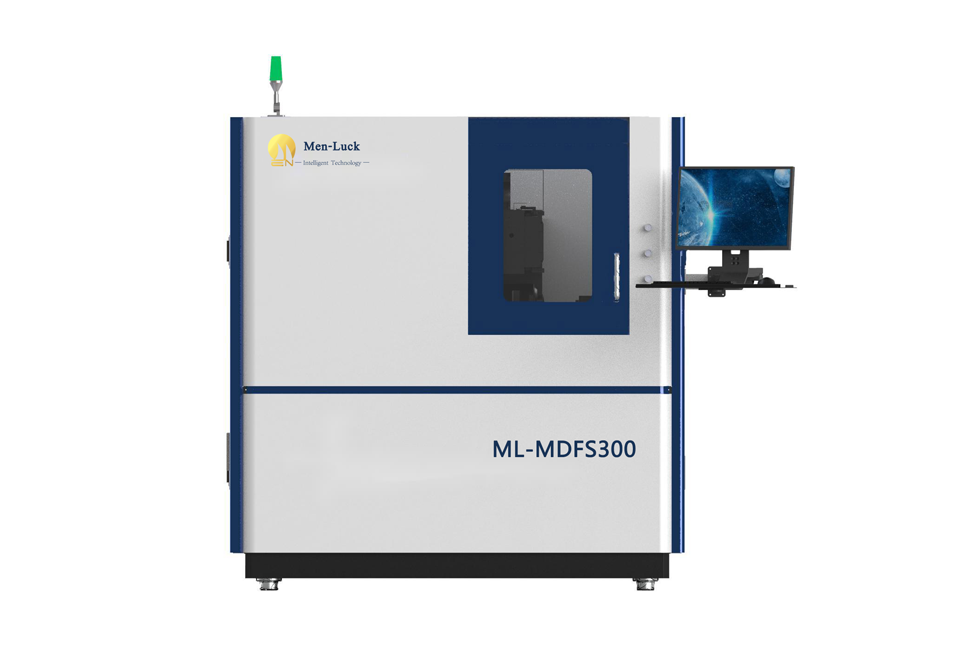

Super fast femtosecond stand laser cutting machine description
Super fast femtosecond stent laser cutting machine can also be called infrared laser cutting machine or three axis laser cutting machine, mainly used for intracranial thrombectomy, nerve intervention, peripheral, stone basket and other metal and non-metal stent laser microprocessing. The equipment adopts the processing mode of infrared and green femtosecond laser. The finished product has the advantages of smooth incision, no burr edge and minimal heat affected zone. Super fast femtosecond bracket laser cutting machine through CE, ISO9001, ISO13485 3C certification, quality assured!
Equipment parameters
| Maximum operating speed | 500mm/s（X）；100mm/s（Z）；600rpm（θ） |
|---|---|
| Positioning accuracy | ±1um（X）；±3um（Z）；±15arcsec（θ） |
| Repetitive positioning accuracy | ±0.2um（X）；±1um（Z）；±3arcsec（θ） |
| Cutting seam width | 15um~25um |
| Consistency of reinforcement width | <±5um |
| Machining material | 316L & Ni -Ti & L605 & Fe & Mg & Zn & PLA & PLLA & PI & Nylon & glass, metal & nonmetal materials |
| Tube blank length | <2.5m (customized support fixture) |
| Laser wavelength | 1030-1070±10nm |
| Processing wall thickness | 0~0.5±0.02 mm |
| Processing tube diameter | Φ0.1~Φ7.5±0.02 mm&Φ0.3 ~Φ16.0±0.02 mm&Φ1.0 ~Φ30.0±0.02 |
| Single processing range | 0～300mm (longer products will be machined by segmented splicing method); |
| Laser type | Infrared green femtosecond laser |
| Laser wavelength | 1030nm~1070nm±10nm&532nm±10nm |
| laser power | 10W&16W&20W for option |
| Equipment power supply | 220V± 10%, 50Hz；AC 25A (main circuit breaker); |
| File format | DXF、DWG |
| Equipment dimensions | 2100mmx1250mm（1000mm）x1750mm |
| Equipment weight | 1800Kg |
Strong adaptability
- Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
- Support machining of radial opening feature of equal diameter tube
- Can machine 304 & 316L & Ni-Ti & L605 etc. materials
- Can aachine equal diameter tube & deformed tube & semi-finished tube &small format plane instrument
- Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
- Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
- Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
- Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

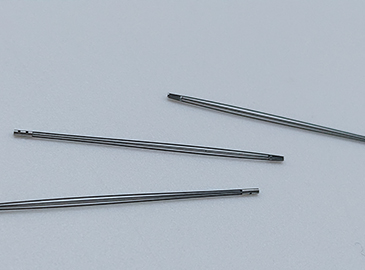

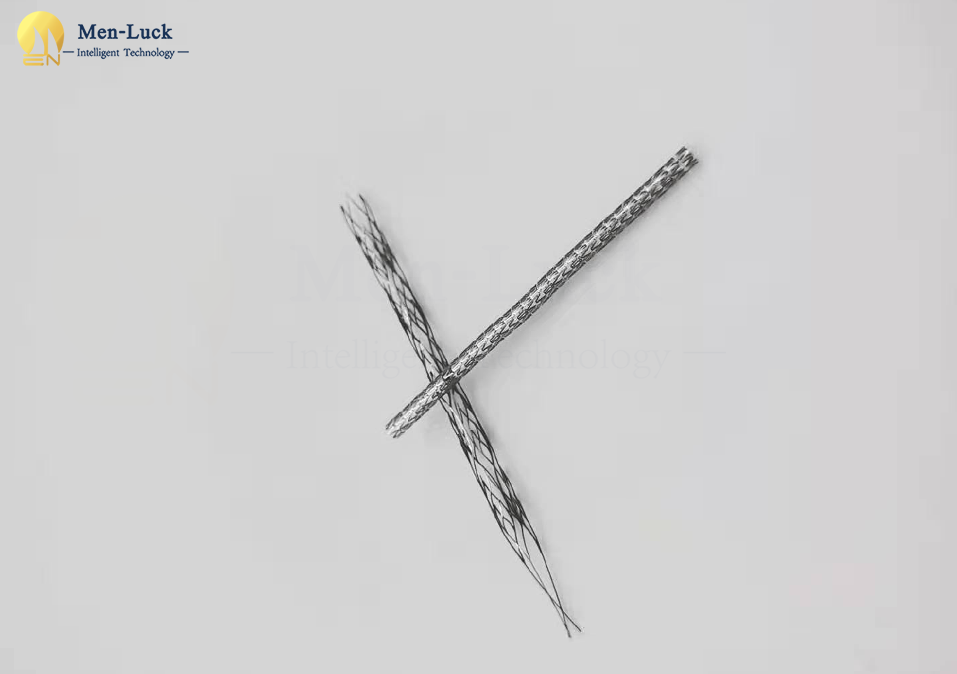

Sample display
Φ 0.45mm-ni-ti stone taking stent

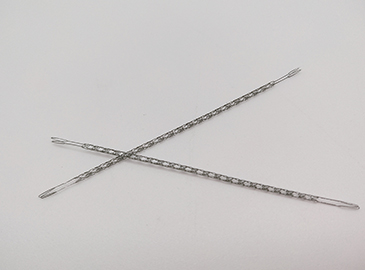

Φ 1.0mm-ni-ti nerve interventional stent

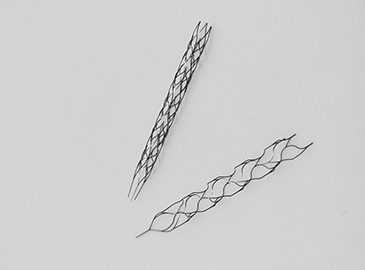

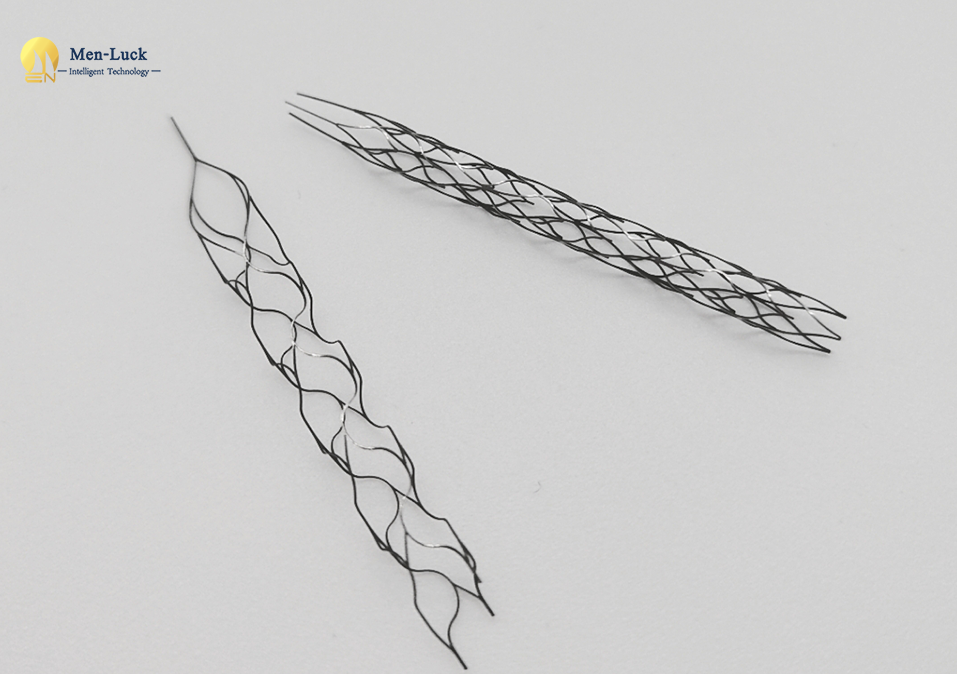

Φ 2.0mm-ni-ti bolt removal stent

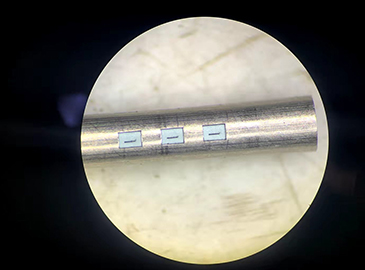

Nylon slit

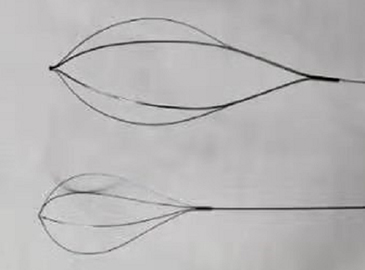

Stone stent

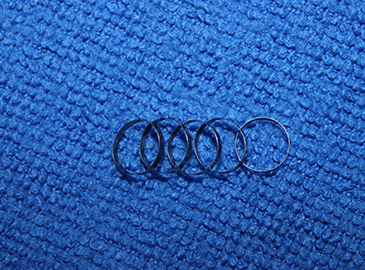

Tantalum platinum iridium developing ring
Flexible design
- Follow the design concept of ergonomics, delicate and concise
- Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
- Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
- The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
- Support forward innovative design from component level to system level
- Open type control & laser micromachining software system is easy to operate & intuitive interface
