Precision Optical Fiber Laser Cutting Machine for PCB substrate ML-EC6080

Laser micro-machining of planar and curved surfaces of Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy, etc.

15 ~ 35um

≤ 10um

smooth incision & small heat affected zone & less burr

minimum product size 50um

Spread the love

Maximum operating speed	1000mm/s(X) ；1000mm/s(Yl&Y2) ；50mm/s(Z)
Positioning accuracy	±3um (X) ±3um (Y1&Y2) ；±5um (Z)
Repetitive positioning accuracy	±lum (X) ；±lum(Y1&Y2) ；±3um（Z）
Machining material	Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy, etc.
Material wall thickness	0~2.0±0.02 mm
Plane machining range	600mm*800mm
Laser type	Fiber laser
Laser wavelength	1030~1070±10nm
Equipment power supply	220V± 10%, 50Hz；AC 15A (main circuit breaker)
File format	DXF&DWG
Equipment dimensions	1200mmx1000mmx1700mm
Equipment weight	1200Kg

With fine machining technology capabilities of laser cutting, drilling and slotting for planar and curved surface instruments
Can process Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy and other materials
Equipped with a self-developed direct drive mobile double drive precision movement platform, granite platform, aluminum alloy and granite beam for selection
Provide the optional functions of double station & Visual Positioning & automatic feeding and unloading system & dynamic monitoring of machining
Equipped with self-developed long / short focal length sharp nozzle & flat nozzle fine laser cutting head
Equipped with modular material receiving and dedusting piping system
Provide self-developed movable tension frame & fixed tension frame & vacuum adsorption & honeycomb plate etc. optional fixture
Equipped with self-developed 2D &2.5D&3D CAM software system for laser micro-machining

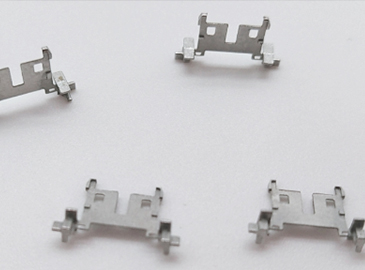

MIMstructure cutting

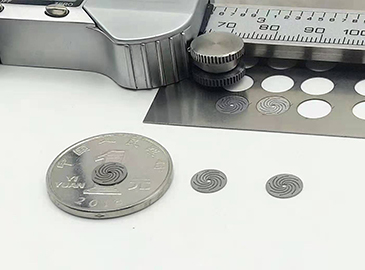

Titaniumalloy sheet WT0.8mmcutting

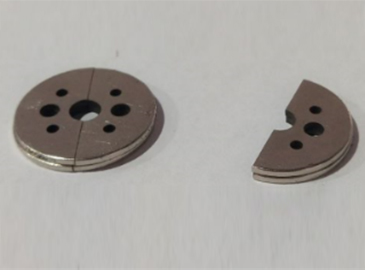

Magnetic sheet cutting

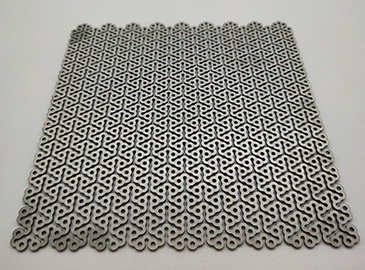

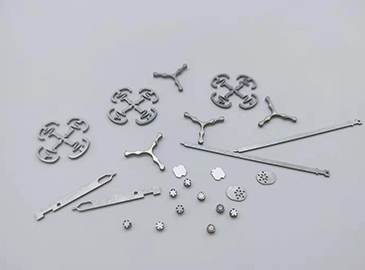

All kinds of alloymicro structure forming

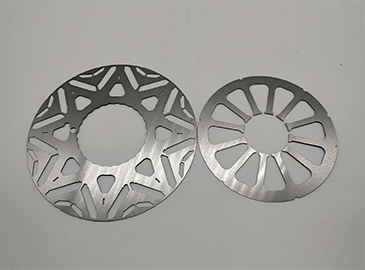

Cutting and forming of silicon steel sheet

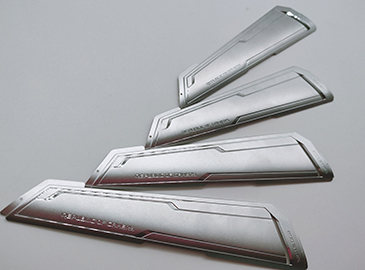

Alloy sheet cutting and forming

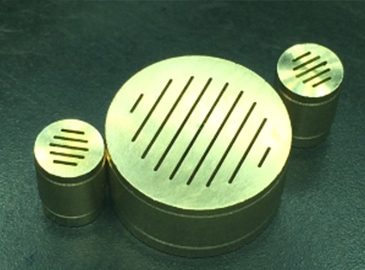

Brass nozzle slotting

Nickel plate forming of mobile phone back cover

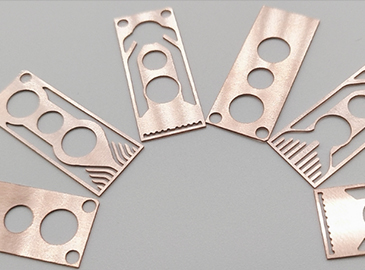

Laser cutting and forming of red copper sheet

Follow the design concept of ergonomics, delicate and concise
The combination of software and hardware functions is flexible, supporting personalized function configuration and intelligent production management
Support positive innovation design from component level to system level
Open control & laser micromachining software system easy to operate & intuitive interface
