Precision 3D Speaker Mesh Laser Cutting Machine ML-EC6045

Laser micro-machining of planar, circular, spherical and conical surface speaker mesh of steel & Al & MgAl & Ti & Cu alloy

20 ~ 35um

≤ ± 10um

smooth incision & small heat affected zone & less burr

the minimum product size is 100um

Spread the love

Maximum operating speed	1000m m/s (X) ；1000m m/s (Y1&Y2) ；50 mm/s (Z)；600rpm(θ)
Positioning accuracy	±3um (X) ±3um (Y1&Y2) ； ±5um (Z)； ±15arcsec (θ)
Repetitive positioning accuracy	±1um(X)；±1um(Y1&Y2) ；±3um (Z)； ±3arcsec (θ)
Machining material	Steel & Al & MgAl & Ti &Cu and other metal materials
Material wall thickness	0~2.0±0.02 mm
Plane machining range	450mm*600mm
Laser type	UV fiber laser
Laser wavelength	1030~1070±10nm
Laser power	CW1000W&QCW150W& QCW300W & QCW450W for optional
Equipment power supply	220V± 10%, 50Hz；AC 15A (main circuit breaker)
File format	DXF、DWG
Equipment dimensions	1300mm1400mm1800mm
Equipment weight	1500Kg

Have the ability of laser cutting, drilling, slotting and other fine machining technology for planar & curved surface instruments
Can machine FPC & PCB & PET & PI & copper foil & aluminum foil & carbon fiber & glass fiber & composite material & ceramic and other materials
It is equipped with self-developed direct drive mobile dual drive precision motion platform & precision rotatable axis & granite platform & sealed shafting configuration
Provide dual position & visual positioning & automatic feeding and unloading system & dynamic machining monitoring and other optional functions
Equipped with self-developed long / short focal length sharp nozzle & flat nozzle fine laser cutting head
Equipped with customized profiling fixture & Slag dust separation collection module & Dust removal pipeline system & Safety explosion-proof treatment system
Equipped with self-developed 2D &2.5D&3D CAM software system for laser micro-machining

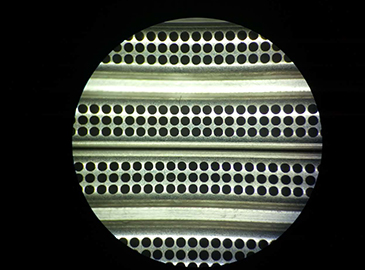

Huawei headset hole forming

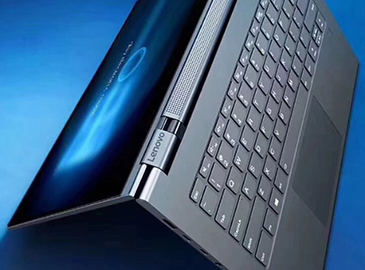

Yoga930 & 940 & 950 shaft microporous forming

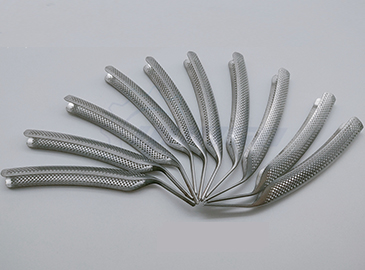

Razor mesh cutting and forming

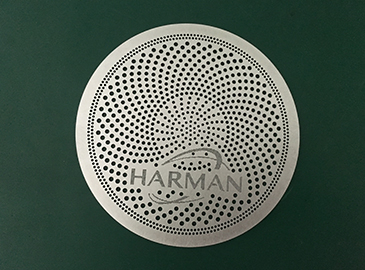

Forming of aluminum alloy Harman arc surface horn mesh

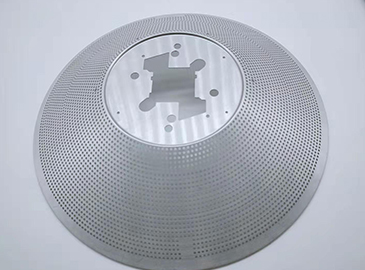

Aluminum alloy speaker horn net forming

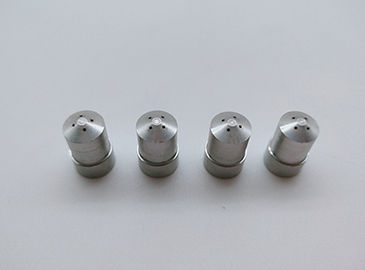

Conical hole type

Follow the design concept of ergonomics, delicate and concise
The combination of software and hardware functions is flexible, supporting personalized function configuration and intelligent production management
Support positive innovation design from component level to system level
Open control & laser micromachining software system easy to operate & intuitive interface
