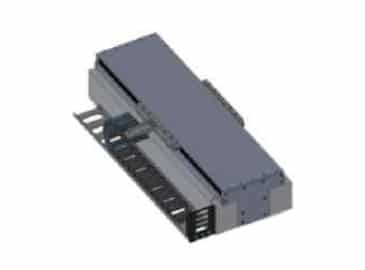

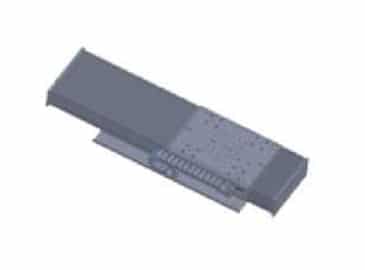

PLS Series Precision Linear Axis

Scope of application

ML-PLS series precision linear axis, mainly used in medical, electronic, automotive, aviation, military, daily hardware and other fields, precision laser micro-machining system, precision machining system, precision measurement system, automation system, to provide high-speed, high-precision linear motion system solutions for tools or workpieces.

Spread the love

Share this product

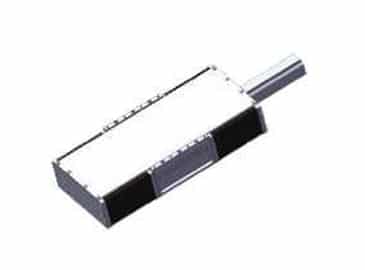

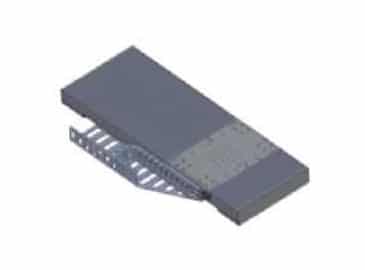

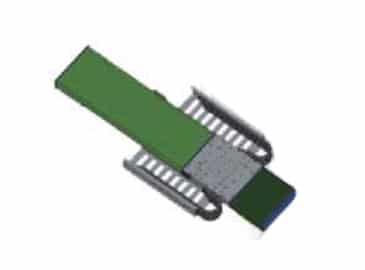

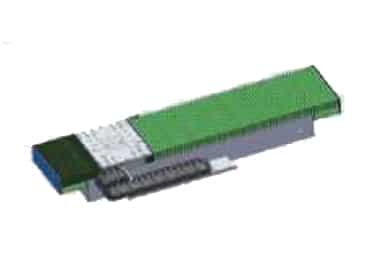

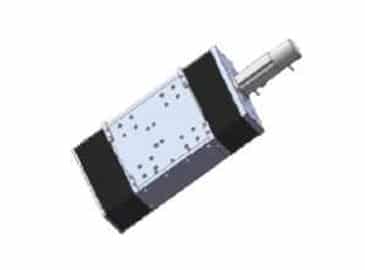

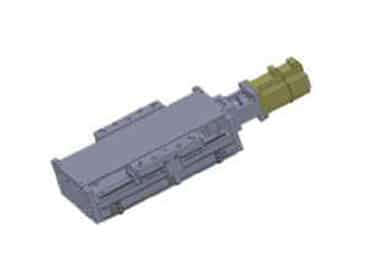

Product Model

ML-PLS100A

ML-PLS100B

ML-PLS100C

ML-PLS300

PLS350

PLS450

PLS600

PLS800

Product Characteristics

Modular electrical standards; design,interface mechanical are all with andunified
All models of linear axis are easy to quickly build multi-axis motion the of platform,diversified customers；flexible to meet market demand
Relying on engineering the technical experience of application andthe team in the field of contact & non-contact machining and measuring system, we provide a variety of linear selection. precision, position etc. can axis products to customers for load capacity, transmission, requirements, The stroke, speed, drive, feedback, protection be customized by customers, so as to minimize the cost on the premise of meeting different application requirements;
It is easy to disassemble can provide precise and maintain, and motion control engineering support in mechanical, electronic control and software applications;

Product Parameters

Technical indicators

Model	Travel range	Driving mode	positioning accuracy	Repeat positioning accuracy	resolving power	No load running speed	Load capacity	dead weight	Degree of protection
GZH-PLS1ooA	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	5Kg	6Kg	IP55
GZH-PLS1ooB	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	5Kg	6Kg	IP55
GZH-PLS1ooC	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	5Kg	7Kg	IP55
GZH-PLS300	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	10Kg	40Kg	IP55
GZH-PLS350	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	10Kg	30Kg	IP55
GZH-PLS450	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	40Kg	35Kg	IP55
GZH-PLS650	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	50Kg	50Kg	IP55
GZH-PLS850	100mm	Servo motor & linear motor optional	士3um	士1um	0.1um	50~100mm/s	60Kg	60Kg	IP55

Delivery and Warranty

Model	quantity	Company/set	Delivery date/week	quality guarantee period/month
GZH-FCH50-A	1	Set	4~10 week	12 month
GZH-FCH50-B	1	Set	4~10 week	12 month
GZH-FCH50-C	1	Set	4~10 week	12 month
GZH-PLS300	1	Set	4~10 week	12 month
GZH-PLS350	1	Set	4~10 week	12 month
GZH-PLS450	1	Set	4~10 week	12 month
GZH-PLS600	1	Set	4~10 week	12 month
GZH-PLS800	1	Set	4~10 week	12 month
