Medical needle laser processing center ML-MDN500

Laser micromachining of indwelling needle, puncture needle, radiofrequency ablation needle, etc

18~30um

≤ ±10um

no burr & smooth incision

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love

Maximum operating speed	300mm/s（X）；100mm/s（Z）；600rpm（θ）
Positioning accuracy	±2um（X）；±3um（Z）；±15arcsec（θ）
Repetitive positioning accuracy	±0.5um（X）；±1um（Z）；±3arcsec（θ）
Cutting seam width	15um~25um
Machining material	304&316L&Ni-Ti&L605 etc.
Tube blank length	< 2.5m (support fixture can be customized);
Laser type	Fiber laser
Processing wall thickness	0~0.5±0.02 mm
Processing tube diameter	Φ0.1~Φ7.5&Φ0.3~Φ16.0±0.02 mm；
Tailing length	60mm
Single processing range	0～300mm (longer products can be processed by segmented splicing method);
Laser type	Fiber laser
Laser wavelength	1030-1070±10nm
laser power	100W&200W&250W&300W&500W for option
Equipment power supply	220V± 10%, 50Hz；AC 25A (main circuit breaker)
File format	DXF&DWG
Equipment dimensions	1200mmx1300mmx1700mm
Equipment weight	1500Kg

Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
Support machining of radial opening feature of equal diameter tube
Can machine 304 & 316L & Ni-Ti & L605 etc. materials
Can aachine equal diameter tube & deformed tube & semi-finished tube &small format plane instrument
Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

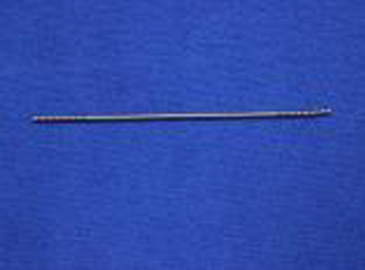

Φ6.4mm pediatric puncture tube

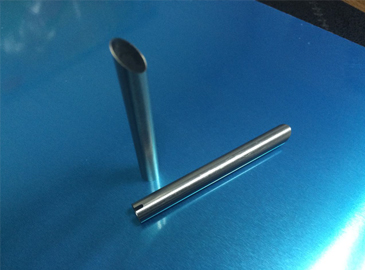

Φ4.0 mm puncture tube fittings

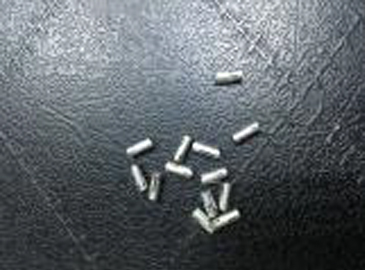

Microtube cutting

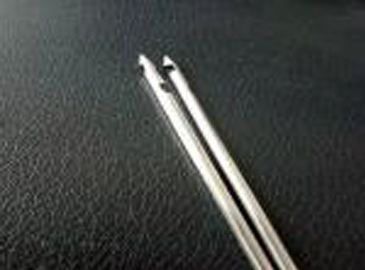

Slotting of puncture needle tube in orthopedics department

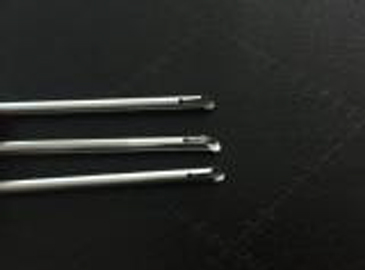

Pinhole opening

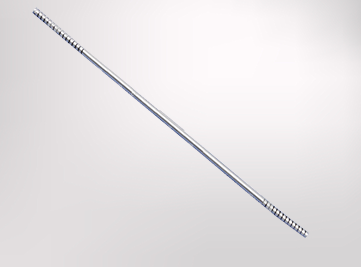

Sample of surgical instruments

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
