Laser Machining Center for Endoscope Snake Bone ML-MDE300

Application

The endoscopic snake bone laser processing center is mainly used for the laser micro-processing of the snake bone of uroscope, choledochoscope, gastroenteroscope, anorectal scope and other medical endoscopes, industrial endoscopes and electronic endoscopes

High Precision Machining

Small cutting seam width :

15~30um

High machining accuracy :

≤±10um

Good quality of incision :

no burr & smooth incision

High machining efficiency :

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love

Endoscopic snake bone laser processing center

Endoscope snake bone laser processing center is equipped with laser dry cutting and wet cutting capabilities, and supports the processing of isodiameters, variable diameters and planar instruments with centripetal, vertical and composite openings. Such as gastroenteroscope snake bone, anorectal snake bone, elliptic snake bone ring, variable diameter snake bone ring, disposable choledochoscope snake bone, endoscope clip, snake bone threading earrings instrument cutting, drilling, grooving and other fine processing capabilities. The main materials can be processed are 304&316L&Ni-Ti&L605 and other alloy materials.

Equipment parameters

Processing wall thickness0~1.0±0.02mm

Maximum operating speed	300mm/s（X）；100mm/s（Y）Optional；100mm/s（Z）；600rpm(θ)
Positioning accuracy	±3um（X）；±3um（Y）；±3um（Z）；±15arcsec（θ）
Repetitive positioning accuracy	±1um（X）；±1um（Y）；±1um（Z）；±3arcsec（θ）
Cutting seam width	15um~30um
Machining material	304、316L、Ni-Ti、L605 etc.
Tube blank length	< 2.5m (support fixture can be customized);
Processing tube diameter	Φ0.3~Φ7.5Φ1.0~Φ16.0±0.02mm
processing range	0～300mm (longer products will be machined by segmented splicing method);
Length of surplus material	60nm
Laser type	Fiber laser
Laser wavelength	1030-1070±10nm
laser power	100W&200W&300W&500W for option
Equipment power supply	220V± 10%, 50Hz；AC 25A (main circuit breaker);
File format	DXF、DWG
Equipment dimensions	1600mmx950mmx1700mm
Equipment weight	1500Kg

Strong adaptability

Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
Support machining of radial opening feature of equal diameter tube
Can machine 304 & 316L & Ni-Ti & L605 etc. materials
Can aachine equal diameter tube & deformed tube & semi-finished tube &small format plane instrument
Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

Sample display

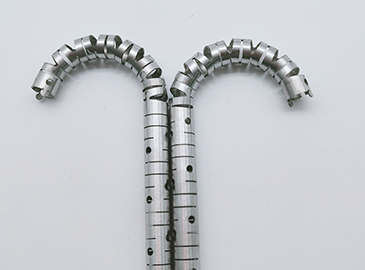

SUS304 variable diameter snake bone ring

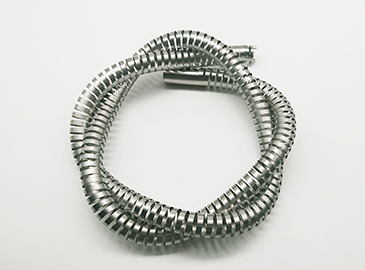

SUS304Φ16mm-L1200 anorectal snake bone

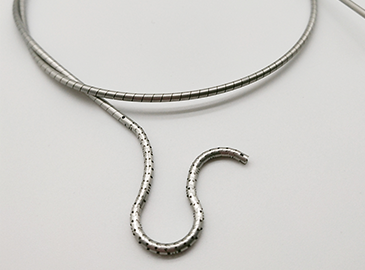

Φ2.8mm-L700mm primary uroscope snake bone

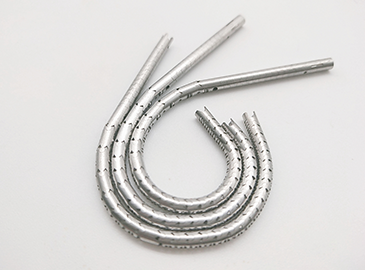

SUS304Φ5.0mm-L120 Anorectal snake bone

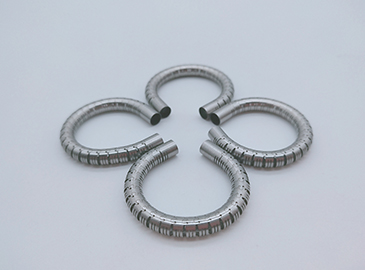

Φ 4.5mm disposable biliary endoscopy snake bone

Ni-Ti Φ16 mm-L1200mm urology endoscope snake bone

Flexible design

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
