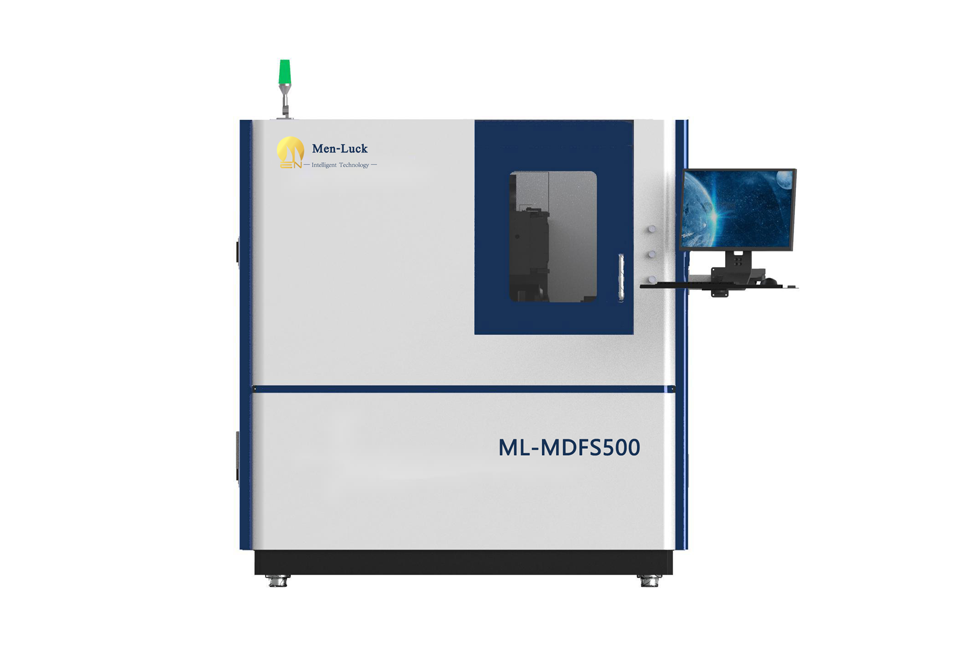

Laser Cutting Machine for Ultra Fast Femtosecond Stent (four axis & infrared & green light) ML-MDFS500

Application

Laser micromachining of metal and non-metal stents such as intracranial embolectomy nerve intervention peripheral stone extraction stent

High Precision Machining
Small cutting seam width :

<20um

High machining accuracy :

≤±5um

Good quality of incision :

infrared & green light processing mode for option,no burr & smooth incision & minimal heat affected zone

High machining efficiency :

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love
Equipment parameters
Maximum operating speed 500mm/s(X);100mm/s(Y);100mm/s(Z);600rpm(θ)
Positioning accuracy ±1um(X);±3um(Y);±3um(Z);±15arcsec(θ)
Repetitive positioning accuracy ±0.2um(X);±1um(Y);±1um(Z);±3arcsec(θ)
Cutting seam width 15um~25um
Consistency of reinforcement width <±5um
Machining material 316L & Ni -Ti & L605 & Fe & Mg & Zn & PLA & PLLA & PI & Nylon & glass, metal & nonmetal materials
Tube blank length <2.5m (customized support fixture)
Laser wavelength 1030-1070±10nm
Processing wall thickness 0~0.5±0.02 mm
Processing tube diameter Φ0.1~Φ7.5±0.02 mm&Φ0.3 ~Φ16.0±0.02 mm&Φ1.0 ~Φ30.0±0.02
Single processing range 0~500mm (longer products will be machined by segmented splicing method);
Laser type Infrared green femtosecond laser
Laser wavelength 1030nm~1070nm±10nm&532nm±10nm
laser power 10W&16W&20W for option
Equipment power supply 220V± 10%, 50Hz;AC 25A (main circuit breaker);
File format DXF、DWG
Equipment dimensions 2100mmx1350mmx1750mm
Equipment weight 1800Kg
Strong adaptability
  • Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
  • Support machining of radial opening feature of equal diameter tube
  • Can machine 304 & 316L & Ni-Ti & L605 etc. materials
  • Can aachine equal diameter tube & deformed tube & semi-finished tube &small format plane instrument
  • Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
  • Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
  • Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
  • Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining
Sample display

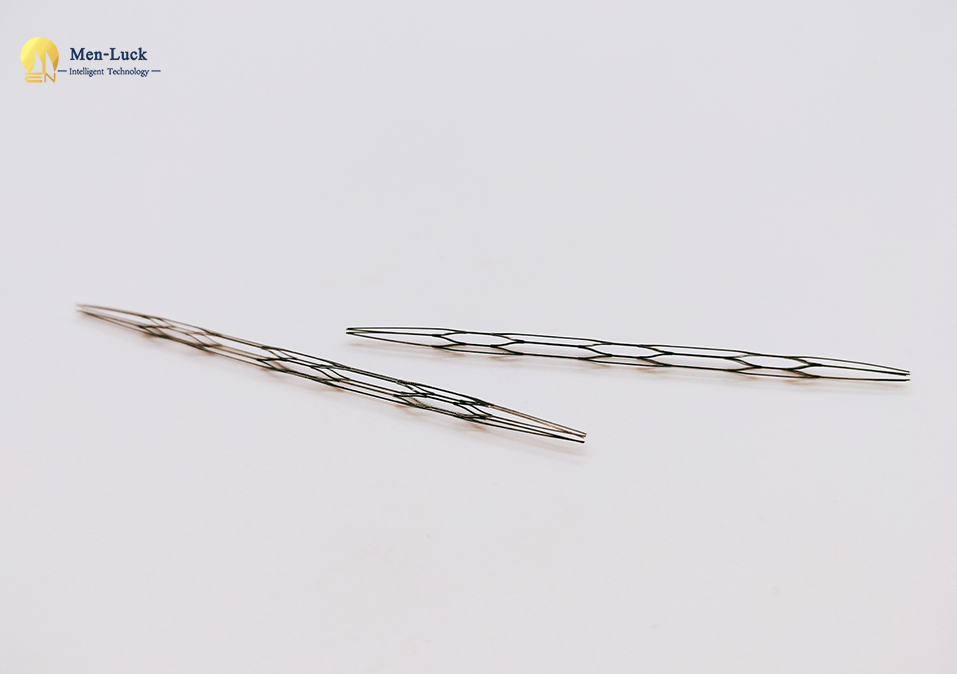

Ni Ti bolt removal stent

Ni Ti bolt removal stent

Sus weight 0.1mm-w30um-d50um

Φ 3.2mm polymer stent

Stainless steel WT0 2mm-0.02mm micropore

Sea wave tube

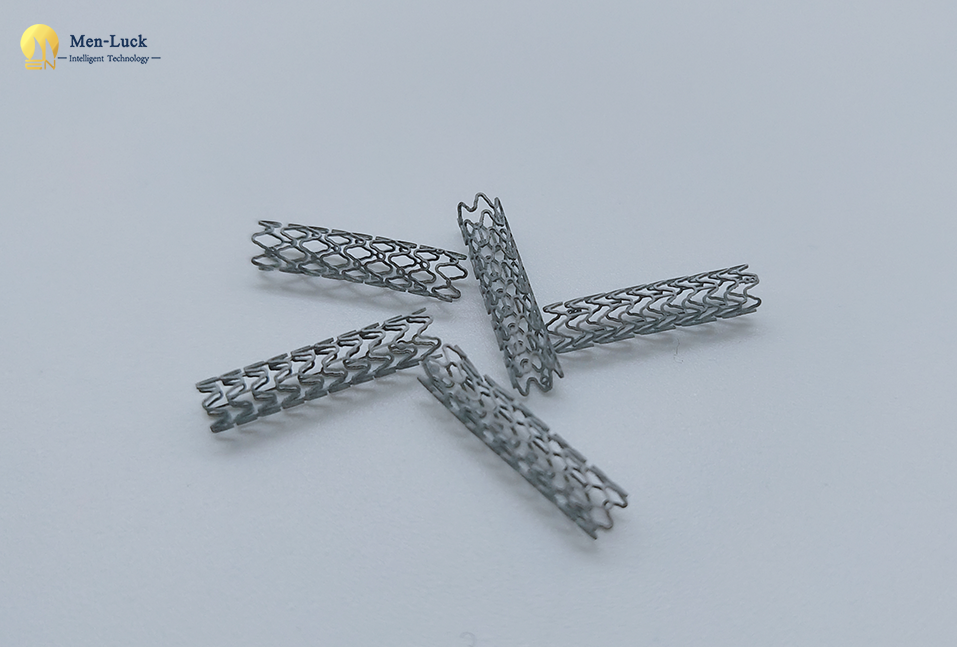

Degradation stent

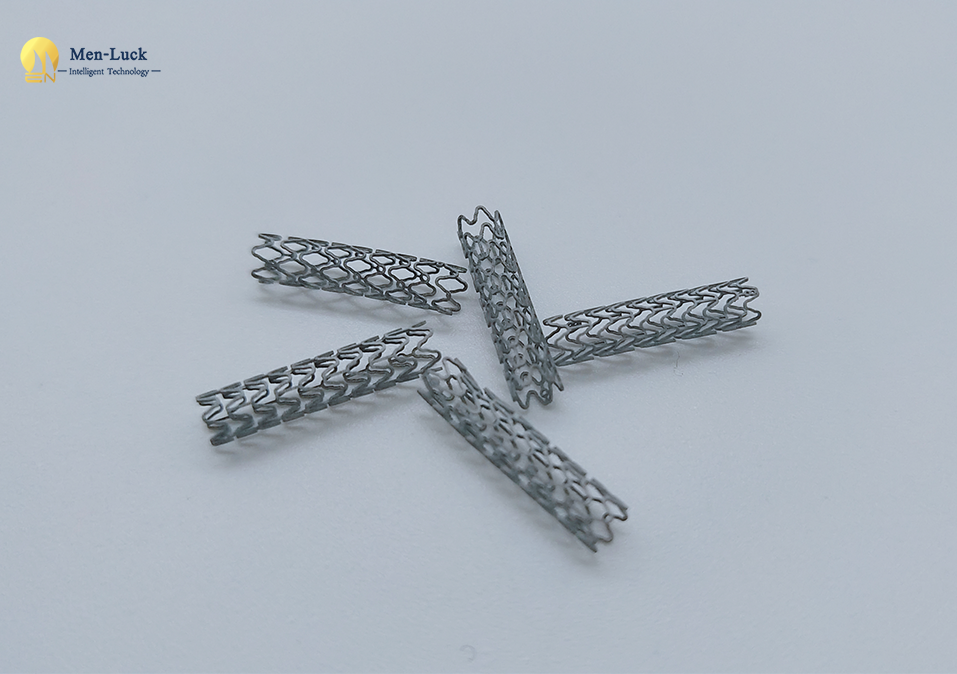

Polylactic acid degradation stent

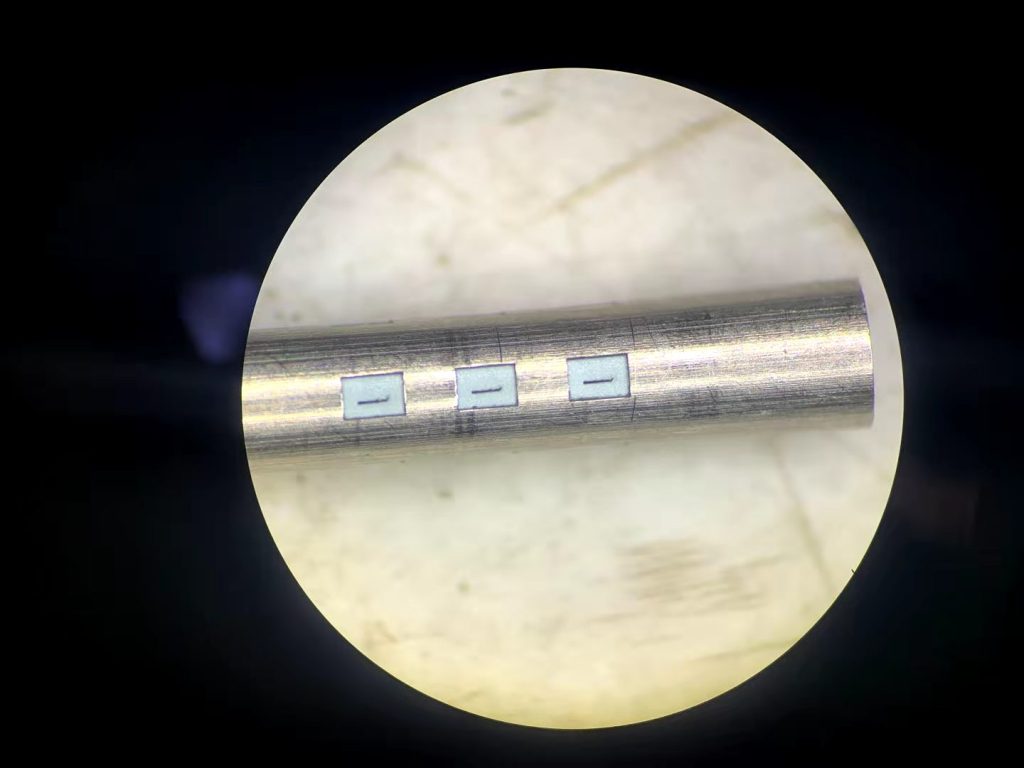

Nylon slit

Flexible design
  • Follow the design concept of ergonomics, delicate and concise
  • Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
  • Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
  • The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
  • Support forward innovative design from component level to system level
  • Open type control & laser micromachining software system is easy to operate & intuitive interface
