Laser Cutting MachineLaser Cutting Machine for Precision Stainless Steel Instruments

Laser Cutting Machine for Precision Stainless Steel Instruments EPLC3030

Application

Laser micromachining of precision plane and curved surface instruments of stainless steel & hard alloy steel & Ceramics & Aluminum & Copper & magnesium aluminum alloy

High Precision Machining

Small cutting seam width :

15 ~ 30um

High machining accuracy :

≤ ±10um

Good quality of incision :

smooth incision & heat affected zone & less burr

Size refinement :

the minimum product size is 20um

Spread the love

Equipment parameters

Maximum operating speed	1000mm/s(X) ；1000mm/s(Yl&Y2) ；50mm/s(Z)；
Positioning accuracy	±3um (X) ±3um (Y1&Y2) ；±5um (Z)；
Repetitive positioning accuracy	±1um(X) ；±1um (Y1&Y2) ；±3um(Z)；
Machining material	stainless steel & hard alloy steel & Ceramics & Aluminum & Copper & magnesium aluminum alloy
Plane machining range	300mm*300mm
Material wall thickness	0~1.5±0.02 mm；
Laser type	Fiber Laser
Laser wavelength	1030-1070±10nm;
Laser power	CW100W&200W&300W&QCW150W&450W for option
Equipment power supplyr	220V± 10%, 50Hz；AC 20A (main circuit breaker)
File format	DXF、DWG
Equipment dimensions	1200mm1300mm1600mm
Equipment weight	1200Kg

Strong adaptability

Have the ability of laser cutting, drilling, blind slotting, marking and other fine machining technology for plane & curved surface instruments
Can machine stainless steel, hard alloy steel, ceramics, aluminum alloy and other materials
Equipped with a self-developed direct drive mobile double drive precision movement platform, granite platform, aluminum alloy granite beam for selection
Provide the optional function, such as double station & Visual Positioning & automatic feeding and unloading system & dynamic monitoring etc.
Equipped with self-developed long & short focal length, sharp nozzle & flat nozzle fine laser cutting head
Equipped with modular material receiving and dust removal pipeline system
Provide self-developed movable tension frame & fixed tension frame & vacuum adsorption & honeycomb plate, etc. optional fixture
Equipped with the self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

Sample display

SUS WT0.1-W30um-D50um blind slot

SUS WT0.6- Ø 0.05mm microhole

Ceramic WT0.6- Ø 0.06mm microhole

All kinds of holes on WT0.6mm aluminum plate

WT0.8mm magnesium aluminumplate Ø 0.1mm -Ø1mm various hole cutting

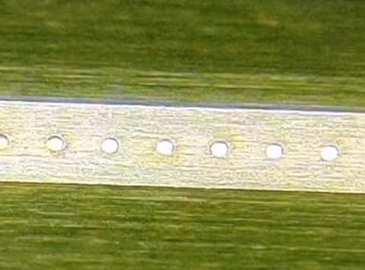

Stainless steel WT0.2mm-0.02mm microhole

Alloy steel WT3mm- Ø 0.2mm spinneret hole drilling

Flexible design

Follow the design concept of ergonomics, delicate and concise
Flexible software & hardware function collocation, supporting personalized function configuration & intelligent production management
Support positive innovation design from component level to system level
Open control & laser micromachining software system easy to operate & intuitive interface
