Laser Cutting Machine for Precision Stainless Steel Instruments ML-MDSO500

Application

Laser micromachining of drilling & blind slotting & cutting of stainless steel, aluminum, copper and titanium with equal diameter, variable diameter and special-shaped precision 3D instruments

High Precision Machining

Small cutting seam width :

15 ~ 30um

High machining accuracy :

≤ ±10um

Good quality of incision :

smooth incision & heat affected zone & less burr

Size refinement :

the minimum product size is 50um

Spread the love

High-precision five-axis laser cutting machine for electric toothbrush tube cutting | MenLuck

Equipment parameters

Maximum operating speed	500mm/s(X1) ；100mm/s(X2) ；50mm/s(Y) ；50mm/s(Z)； 600rpm(θ）
Positioning accuracy	±3um (XI); ±5um (X2);±3um (Y); ±3um (Z) ;±15arcsec (θ)
Repetitive positioning accuracy	±1um(X1) ；±3um(X2) ；±1um(Y) ； ±1um (Z) ； ±3arcsec (θ)
Cutting seam width	15um~30um
Machining material	stainless steel & hard alloy steel & Ceramics & Aluminum & Copper & magnesium aluminum alloy
Material wall thickness	0~2.0± 0.02 mm
Processing tube range	Φ1.0~Φ16.0 &Φ1.0~Φ40.0±0.02 mm；
Laser type	Fiber Laser
Laser wavelength	1030-1070±10nm;
Laser power	CW100W~1000W&QCW150W~450W for option
Equipment power supply	220V± 10%, 50Hz；AC 20A (main circuit breaker)
File format	DXF、DWG
Equipment dimensions	1200mm1300mm1750mm
Equipment weight	1500Kg

Strong adaptability

Have the ability of fine machining technology of equal diameter & variable diameter & special-shaped precision thin-walled three-dimensional instrument drilling & blind slotting & cutting
Can machine stainless steel & hard alloy steel & Aluminum & Copper & titanium and other metal materials
Equipped with self-developed five axis laser micromachining system and precision rotary shaft with automatic clamping system
Provide visual positioning & automatic loading and unloading system & machining dynamic monitoring & auxiliary workpiece swing and other optional functions
Equipped with self-developed long & short focal length fine laser cutting head
Equipped with modular material receiving and dust removal pipeline system.
Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

Sample display

Amazon smart speaker hole cutting

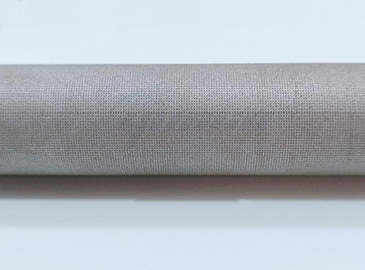

SUS Φ19mm-WT0.8mm-Φ0.06mm Microporous molding

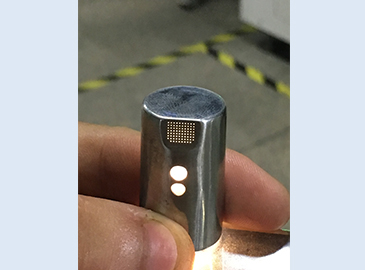

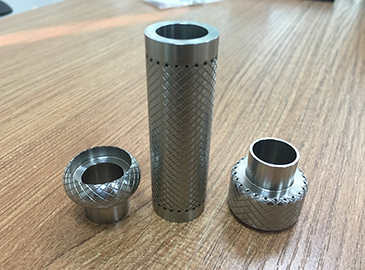

Forming of blind groove on the surface of stainless steel pipe

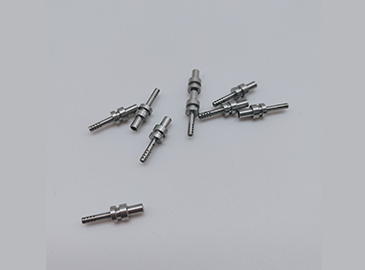

Formed stainless steel tube micropore

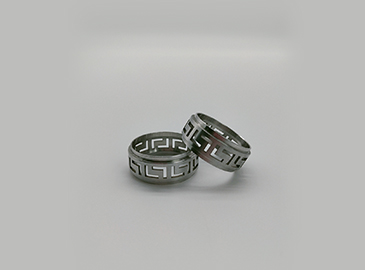

Ring ring hole cutting molding

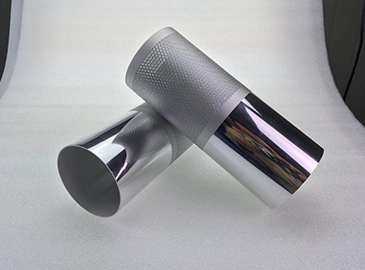

Aluminum tube fancy hole forming

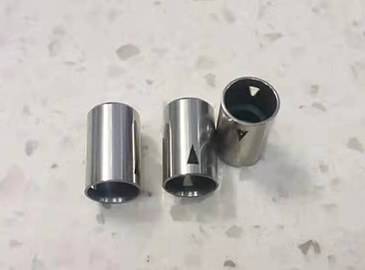

Triangular hole forming of nozzle valve core

Nozzle hole forming

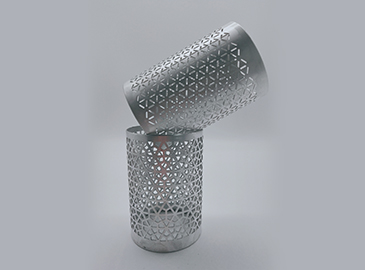

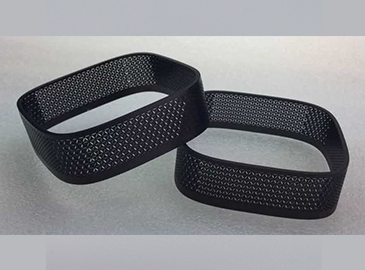

Intelligent speaker aluminum square tube snowflake hole forming

Flexible design

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
