Laser Cutting Machine for Precision Alloy Instruments ML-EC6045

Application

Laser micro-machining of planar and curved surfaces of Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy, etc.

High Precision Machining
Small cutting seam width :

15 ~ 35um

High machining accuracy :

≤ 10um

Good quality of incision :

smooth incision & small heat affected zone & less burr

Size refinement :

minimum product size 50um

Spread the love
Equipment parameters
Maximum operating speed 1000mm/s(X) ;1000mm/s(Yl&Y2) ;50mm/s(Z)
Positioning accuracy ±3um (X) ±3um (Y1&Y2) ;±5um (Z)
Repetitive positioning accuracy ±lum (X) ;±lum(Y1&Y2) ;±3um(Z)
Machining material Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy, etc.
Material wall thickness 0~2.0±0.02 mm
Plane machining range 450mm*600mm
Laser type Fiber laser
Laser wavelength 1030~1070±10nm
Equipment power supply 220V± 10%, 50Hz;AC 15A (main circuit breaker)
File format DXF&DWG
Equipment dimensions 1280mm*1320mm*1600mm
Equipment weight 1500Kg
Strong adaptability
  • With fine machining technology capabilities of laser cutting, drilling and slotting for planar and curved surface instruments
  • Can process Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy and other materials
  • Equipped with a self-developed direct drive mobile double drive precision movement platform, granite platform, aluminum alloy and granite beam for selection
  • Provide the optional functions of double station & Visual Positioning & automatic feeding and unloading system & dynamic monitoring of machining
  • Equipped with self-developed long / short focal length sharp nozzle & flat nozzle fine laser cutting head
  • Equipped with modular material receiving and dedusting piping system
  • Provide self-developed movable tension frame & fixed tension frame & vacuum adsorption & honeycomb plate etc. optional fixture
  • Equipped with self-developed 2D &2.5D&3D CAM software system for laser micro-machining

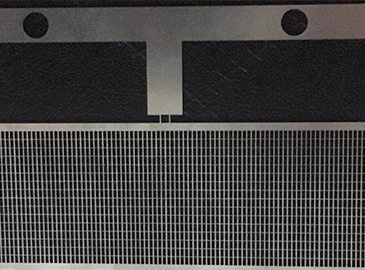

Sample display

MIMstructure cutting

Titaniumalloy sheet WT0.8mmcutting

All kinds of alloymicro structure forming

Cutting and forming of silicon steel sheet

Alloy sheet cutting and forming

Brass nozzle slotting

Nickel plate forming of mobile phone back cover

Tungsten steel sheet cutting and forming

Laser cutting and forming of red copper sheet

Flexible design
  • Follow the design concept of ergonomics, delicate and concise
  • The combination of software and hardware functions is flexible, supporting personalized function configuration and intelligent production management
  • Support positive innovation design from component level to system level
  • Open control & laser micromachining software system easy to operate & intuitive interface
