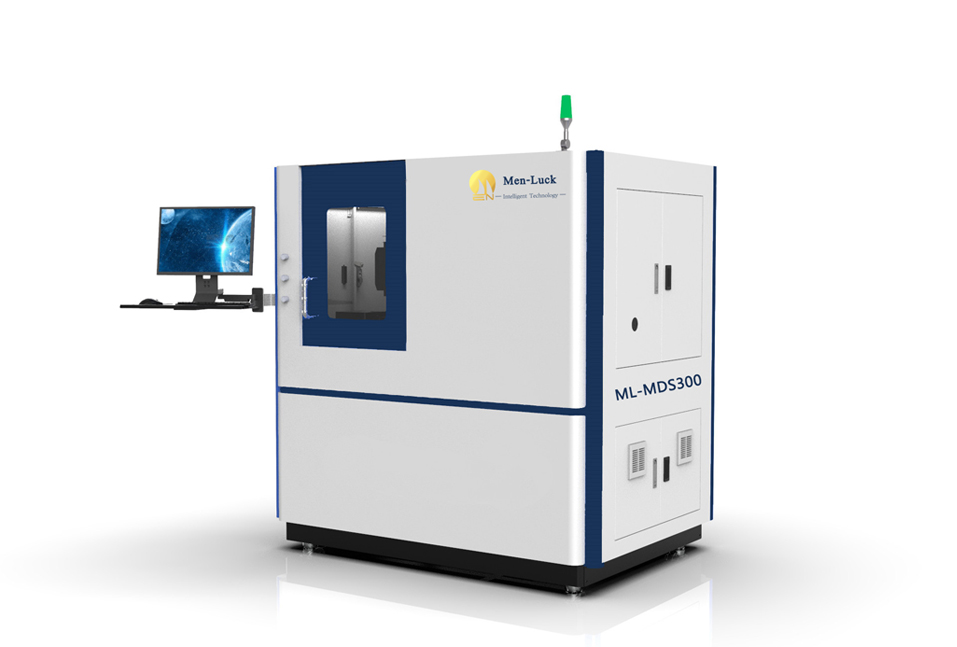

Laser Cutting Machine for Medical Stent ML-MDS300(Φ7.5)

Application

Medical stent laser cutting machine is mainly used for laser micromachining of small-diameter bare metal stents and drug-coated stents such as coronary stents and venous filters

High Precision Machining
Small cutting seam width :

<20um

High machining accuracy :

≤±5um

Good quality of incision :

no burr & smooth incision

High machining efficiency :

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love

Medical stent laser cutting machine description

Medical precision stent laser cutting machine is referred to as medical stent laser cutting machine or small stent laser cutting machine. The cutting machine is mainly composed of a precision motion table, a controller, a laser, a precision rotating shaft, a precision laser cutting head, a dual-drive laser micromachining system, an industrial computer, and a numerical control system. The equipment has a highly flexible system process capability, which can meet the needs of precision thin-walled pipe small slits, dry and wet cutting, length and special-shaped pipes, centripetal/vertical/double-station processing, online measurement and error compensation, automatic feed processing, splicing Material and other diverse system processing technology requirements.



Equipment parameters
Maximum operating speed 300mm/s(X) ；100mm/s(Y)for option ；100mm/s（Z）；600rpm（θ）；
Positioning accuracy ±1um（X）；±3um（Y）for option；±3um（Z）；±15arcsec（θ）；
Repetitive positioning accuracy ±0.2um（X）；±1um（Y）for option；±1um（Z）；±3arcsec（θ）；
Cutting seam width 15um~25um
Consistency of reinforcement width <±5um
Machining material 316L & Ni-Ti & L605 & Fe & Mg & Zn and other alloy materials
Tube blank length <2.5m (customized support fixture)
Processing wall thickness 0~0.3±0.02mm
Processing tube diameter Φ0.1~Φ7.5±0.02mm
Single processing range 0～300mm (longer products will be machined by segmented splicing method);
Laser type Fiber laser
Laser wavelength 1030-1070±10nm
laser power 100W&200W&300W for option
Equipment power supply 220V± 10%, 50Hz；AC 25A (main circuit breaker);
File format DXF、DWG
Equipment dimensions 2100mmx1250mm（1000mm）x1750mm
Equipment weight 1800Kg
Strong adaptability
  • Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
  • Support machining of radial opening feature of equal diameter tube
  • Can machine 304 & 316L & Ni-Ti & L605 etc. materials
  • Can aachine equal diameter tube & deformed tube & semi-finished tube &small format plane instrument
  • Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
  • Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
  • Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
  • Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

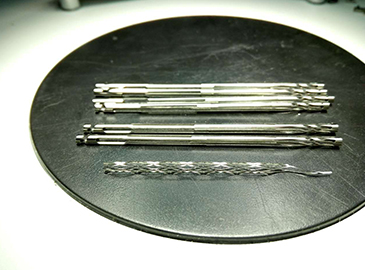

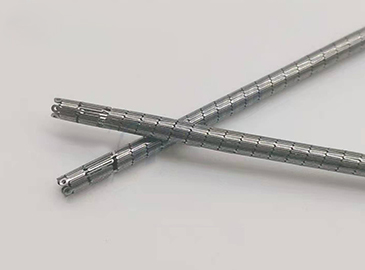

Sample display

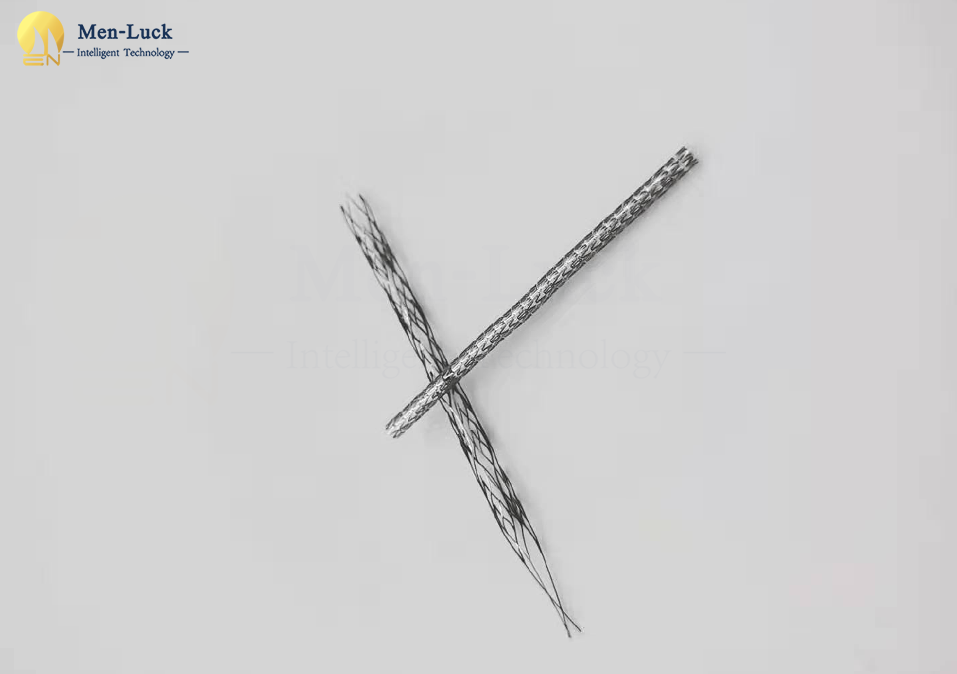

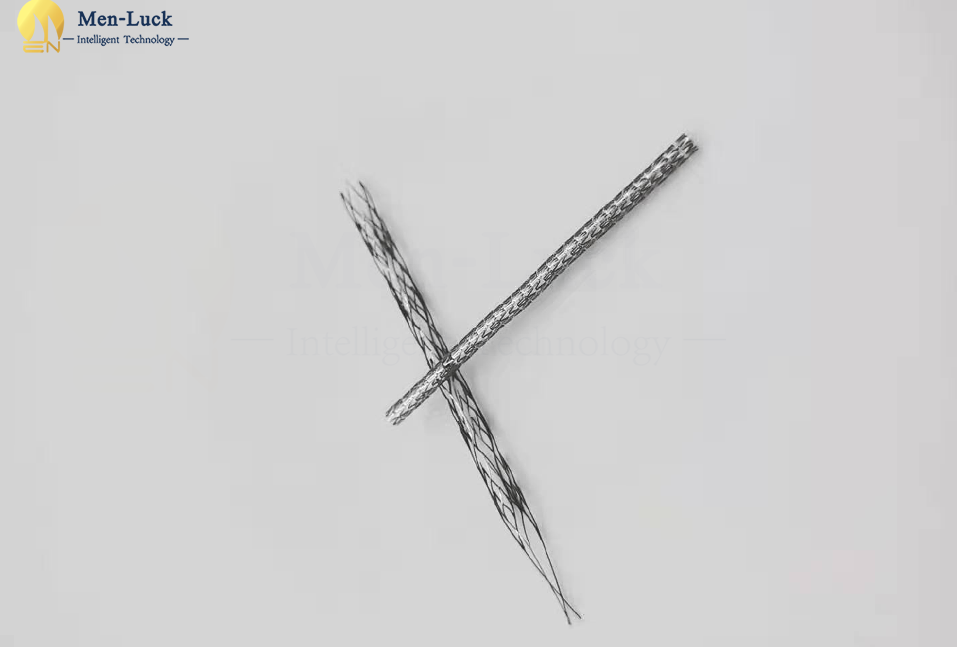

316L & L605 bare metal coronary stent

L605- Φ1.8mm-WT0.15mm drug coated coronary

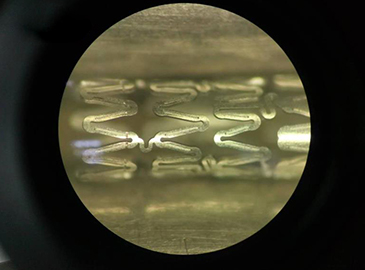

stent microstructure

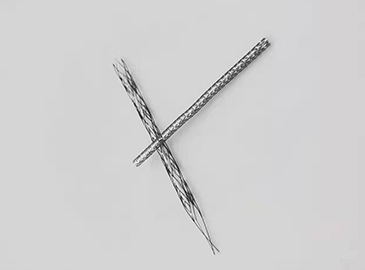

Ni-Ti- Φ2.03mm-WT0.2mm venous filter microstructure

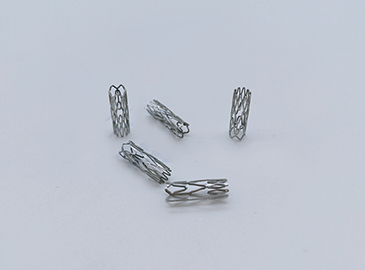

Ni-Ti- Φ 2mm-L100mm-WT0.2mm coronary stent

Ni-Ti- Φ 2.7mm-WT0.2mm coronary stent

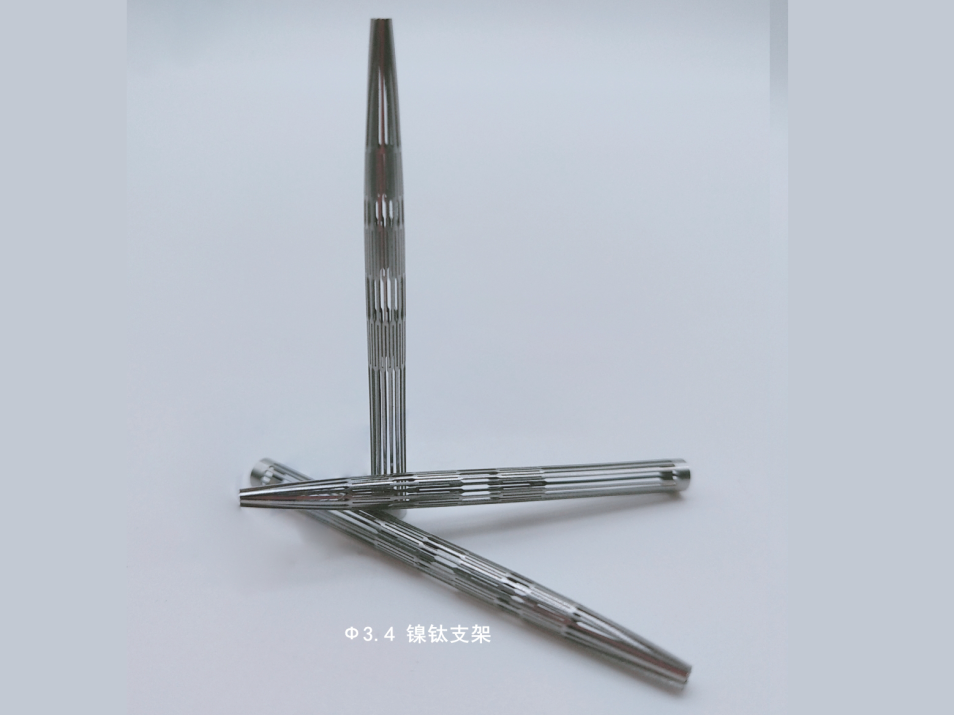

Ni-Ti- Φ 3.4mm-WT0.2mm coronary stent

Flexible design
  • Follow the design concept of ergonomics, delicate and concise
  • Equipped with machine vision system to real time online monitor the laser dynamic machining process
  • The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
  • Support forward innovative design from component level to system level
  • Open type control & laser micromachining software system is easy to operate & intuitive interface

More popular products

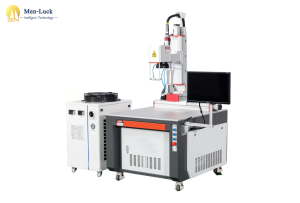

Precision fiber laser welding machine

Precision fiber laser welding machine

Application Precision fiber laser welding machine is a high-precision and high-efficiency welding …

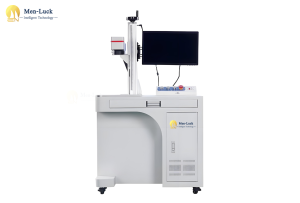

Precision Fiber laser marking machine

Precision Fiber laser marking machine

Application Fiber optic marking machine takes advantage of long pulse width to realize marking pro…

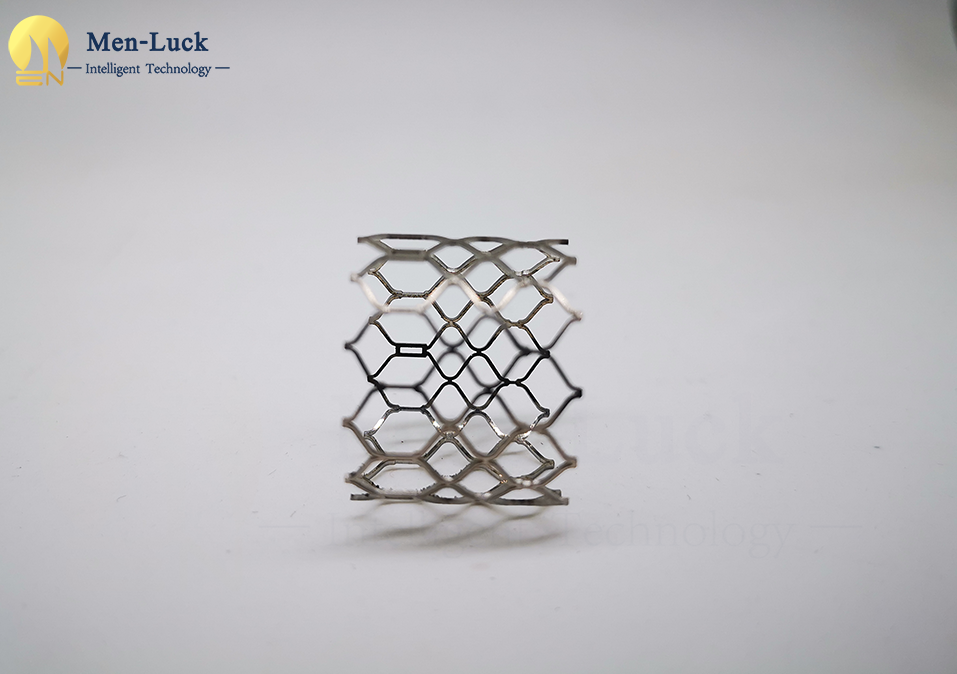

Laser Cutting Machine for Medical Big Stent ML-MDS300(Φ30)

Laser Cutting Machine for Medical Big Stent ML-MDS300(Φ30)

Application Medical large stent laser cutting machine mainly uses heart valve, mitral valve, perip…

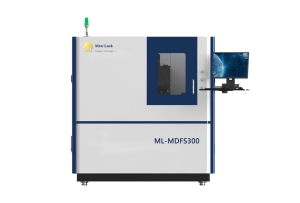

UltraFast Femtosecond Laser Cutting Machine For stent(ThreeAxis & Infrared &Green light ML-MDFS300)
