Laser Cutting Machine for Medical Plane Instruments ML-MD6045(4 axis）

Laser micromachining of plane and curved surface medical instruments such as brain fixed piece, connecting piece and electrode piece

15~30um

≤ ±10um

no burr & smooth incision

direct-drive mobile dual-drive system, one-off cutting through single layer material

Spread the love

Maximum operating speed	500mm/s（X）；500mm/s（Y1&Y2）；50mm/s（Z）
Positioning accuracy	±3um（X）±3um（Y1&Y2）；±5um（Z）
Repetitive positioning accuracy	±1um（X）；±1um（Y1&Y2）；±3um（Z）
Machining material	304&316L&Ni-Ti&L605&Li&Mg&Al&Cu&Fe&Ceramic etc.
Material wall thickness	0~2.0±0.02 mm
Plane processing range	450mm*600mm
Laser type	Fiber laser
Laser wavelength	1030-1070±10nm
laser power	100W&200W&250W&300W&500W&1000W&QCW150W for option
Equipment power supply	220V± 10%, 50Hz；AC 25A (main circuit breaker);
Equipment dimensions	1280mm1320mm1600mm
Equipment weightr	1500Kg

With laser cutting, drilling, slotting, scribing and other fine machining capabilities
Can machine 304&316L&Ni-Ti&L605&Li&Mg&Al&Cu&Fe&Ceramic and other materials
Can machine plane and curved surface instruments
Provide double position & machine vision positioning & receiving and closed blanking & automatic loading and unloading system & machining dynamic monitoring and other matching functions
Equipped with self-developed long & short focal length fine laser cutting head with sharp & flat nozzle & compatible with commercially available laser cutting head
Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

L1. 2mm support rod forming

SUS304 endoscope clip

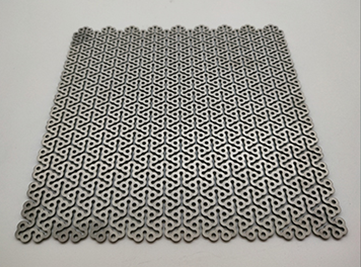

WT0. 8mm titanium alloy cranial fixator

Microstructure forming of various alloys

Nickel titanium electrode sheet

Ceramic microporous machining

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
