Laser Cutting Machine for Precision Steel Plane instrument ML-EC6080

Application

Precision steel instrument laser cutting machine is mainly used for precision stainless steel, hard alloy steel and other kinds of flat, curved instrument laser micromachining

High Precision Machining

Small cutting seam width :

15 ~ 30um

High machining accuracy :

≤ ±10um

Good quality of incision :

smooth incision, burr and edge chipping ＜ 15um

Size refinement :

the minimum product size is 20um

Spread the love

Precision steel instrument laser cutting machine

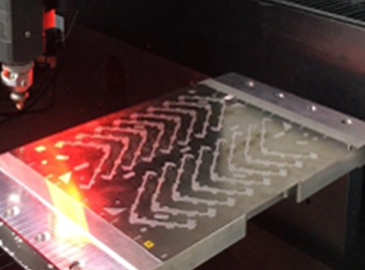

Precision steel instrument laser cutting machine is mainly used for surface treatment before and after the plane, curved instrument laser cutting, drilling, grooving and other processes, can be processed materials are mainly precision stainless steel, hard alloy steel. Such as precision thin steel sheet vacuum adsorption, honeycomb fixture, stainless steel mesh cutting forming, plating furnace stainless steel cutting marking, stainless steel blade cutting forming, etc. The equipment is equipped with self-developed direct drive mobile dual-drive precision motion platform, long focal length, fine laser cutting head with needle-nose and flat nose, which can realize various fine processing requirements.

Equipment parameters

Maximum operating speed	1000mm/s(X) ；1000mm/s(Yl&Y2) ；50mm/s(Z)
Positioning accuracy	±3um (X) ±3um (Y1&Y2) ；±5um (Z)
Repetitive positioning accuracy	±lum (X) ；±lum(Y1&Y2) ；±3um（Z）
Cutting seam width	15um~25um
Machining material	precision stainless steel, hard alloy steel and other materials before or after surface treatment
Material wall thickness	0~2.0±0.02mm
Plane processing range	600mm*800mm；(support customization for larger format requirements)
Laser type	Fiber laser
Processing wall thickness	0~0.5±0.02 mm；
Laser wavelength	1030-1070±10nm
Laser power	CW200W&250W&300W&500W&1000W&QCW150W for option
Equipment power supply	220V± 10%, 50Hz；AC 15A (main circuit breaker)
File format	DXF&DWG
Equipment dimensions	1200mmx1000mmx1700mm
Equipment weight	1200Kg

Strong adaptability

Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
Can machine precision stainless steel, hard alloy steel and other materials before or after surface treatment
Equipped with a self-developed direct drive mobile double drive precision movement platform, granite platform,selection
Provide the optional function, such as double station & Visual Positioning & automatic feeding and unloading system & dynamic monitoring etc.
Equipped with self-developed long & short focal length, sharp nozzle & flat nozzle fine laser cutting head
Equipped with modular material system
Provide self-developed optional fixture, such as movable tension frame & fixed tension frame & vacuum adsorption & honeycombfixture
Equipped with the self-developed 2D & 2.5D & 3D CAM for laser micromachining

Sample display

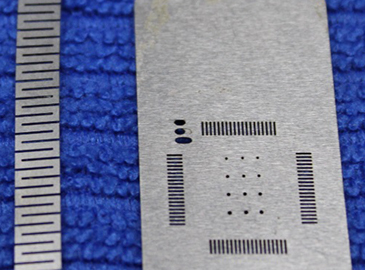

WT0.2mm stencil Cutting

WT0.2mm-L1400mm W600mm stainless steel decorative strip cutting

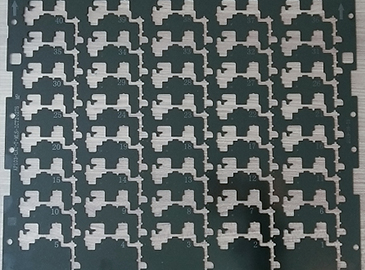

Cutting & marking of WT0.06mm ~ 0.2mm stainless steel sheet after electroplating

WT0.15mm stainless steel cutting

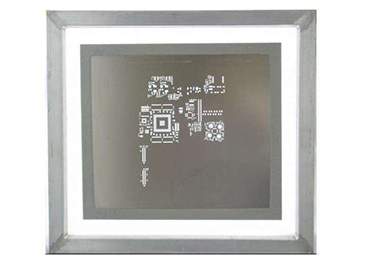

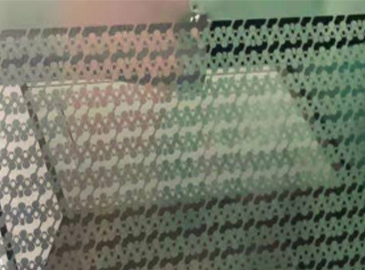

Stainless steel mesh cutting

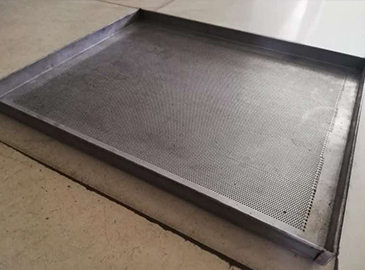

Precision thin steel sheet vacuum adsorption & honeycomb fixture

Flexible design

Follow the design concept of ergonomics, delicate and concise
Flexible software & hardware function collocation, supporting personalized function configuration & intelligent production management
Support positive innovation design from component level to system level
Open control & laser micromachining software system easy to operate & intuitive interface
