Laser Cutting Machine for 3C Metal Structure Parts ML-EC6045

Application

3C metal structure laser cutting machine is mainly used for laser micromachining of plane and curved surface alloy instruments, such as steel, aluminum, magnesium, aluminum, copper, molybdenum, nickel, titanium, powder metallurgy, ceramics, sapphire, etc.

High Precision Machining

Small cutting seam width :

15 ~ 35um

High machining accuracy :

≤ ± 10um

Good quality of incision :

smooth incision & small heat affected zone & less burr

Size refinement :

minimum product size 50um

Spread the love

3C metal structure laser cutting machine

3C laser cutting machine for metal structural parts is mainly used for laser cutting, drilling, slotting and other processing of plane and curved surface instruments. The main materials that can be processed are steel, aluminum, magnesium, aluminum, copper, molybdenum, nickel, titanium, powder metallurgy, Ceramics, sapphire, etc., such as aluminum keyboard hole laser cutting, aluminum plate cutting and forming, magnesium aluminum laptop C piece keyboard hole, magnesium alloy B piece inclined irregular hole, aluminum alloy C piece snowflake hole, aluminum alloy D piece square hole round hole , Aluminum shaft round hole, plastic inlay stamping molding, drilling and other laser micromachining. The equipment is equipped with a self-developed long and short focal length sharp nozzle and flat nozzle fine laser cutting head. The finished product has the advantages of smooth incision, small heat-affected zone, and high processing accuracy.

Equipment parameters

Maximum operating speed	1000mm/s(X) ；1000mm/s(Yl&Y2) ；50mm/s(Z)
Positioning accuracy	±3um (X) ±3um (Y1&Y2) ；±5um (Z)
Repetitive positioning accuracy	±lum (X) ；±lum(Y1&Y2) ；±3um（Z）
Machining material	steel & Aluminum & magnesium aluminum & Copper & Molybdenum & Nicke & Titanium & Powder Metallurgy & Ceramics & Sapphire
Material wall thickness	0~2.0±0.02 mm
Plane machining range	450mm*600mm
Laser type	Fiber laser
Laser wavelength	1030~1070±10nm
laser power	CW1000W & QCW150W& QCW300W& QCW450W for option
Equipment power supply	220V± 10%, 50Hz；AC 15A (main circuit breaker)
File format	DXF、DWG
Equipment dimensions	1290mm1360mm1800mm
Equipment weight	1500Kg

Strong adaptability

With fine machining technology capabilities of laser cutting, drilling and slotting for planar and curved surface instruments
Can process Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy and other materials
Equipped with a self-developed direct drive mobile double drive precision movement platform, granite platform, aluminum alloy and granite beam for selection
Provide the optional functions of double station & Visual Positioning & automatic feeding and unloading system & dynamic monitoring of machining
Equipped with self-developed long / short focal length sharp nozzle & flat nozzle fine laser cutting head
Equipped with modular material receiving and dedusting piping system
Provide self-developed movable tension frame & fixed tension frame & vacuum adsorption & honeycomb plate etc. optional fixture
Equipped with self-developed 2D &2.5D&3D CAM software system for laser micro-machining

Sample display

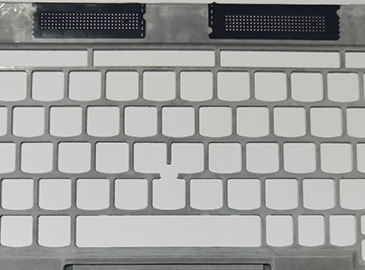

Laser cutting forming of aluminum keyboard hole

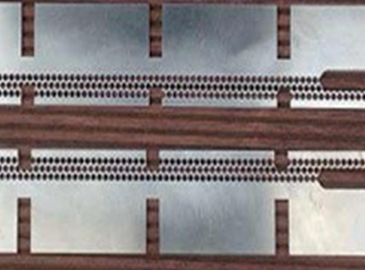

Aluminum sheet cutting and forming

Magnesium aluminum laptop C keyboard hole & plastic inlay punching molding

Flexible design

Follow the design concept of ergonomics, delicate and concise
The combination of software and hardware functions is flexible, supporting personalized function configuration and intelligent production management
Support positive innovation design from component level to system level
Open control & laser micromachining software system easy to operate & intuitive interface
