Five-axis Laser Cutting Machine for Precision Thin-wall Tube TLM500

Application

Laser micromachining of precision thin-walled metal tubes such as medical flexible Hypo tube, spiral tube and spring tube

High Precision Machining
Small cutting seam width :

18~30um

High machining accuracy :

≤ ±10um

Good quality of incision :

smooth incision & heat affected zone & less burr

Size refinement :

one time cutting through one side of the tube wall, continuous & automatic feeding machining

Spread the love
Equipment parameters
Maximum operating speed 300mm/s(X1) ;100mm/s(X2) ;50mm/s(Y) ;50mm/s(Z); 600rpm(θ)
Positioning accuracy ±3um (XI); ±5um (X2);±3um (Y); ±3um (Z) ;±15arcsec (θ)
Repetitive positioning accuracy ±1um(X1) ;±3um(X2) ;±1um(Y) ; ±1um (Z) ; ±3arcsec (θ)
Cutting seam width 15um~30um
Machining material SS & hard alloy steel & Al & Cu & Ti etc. metal materials
Tube blank length <2.5m(Customizable support fixture compatible with infinite tube feeding)
Material wall thickness 0~1.0±0.02 mm
Pipe machining range Ø0.3~ Ø7.5& Ø0.1~ Ø16.0& Ø1.0~ Ø40.0±0.03mm
Plane machining range 200mm*100mm
Machining range 0〜300mm (Longer products can be machined by segmented splicing)
Length of tailing 60mm
Laser type Fiber Laser
Laser wavelength 1030-1070±10nm;
Laser power Optional 200W & 300W & 500W & 1000W& QCW150W
Equipment power supplyr 220V± 10%, 50Hz;AC 20A (main circuit breaker)
File format DXF、DWG
Equipment dimensions 1600mmx950mmx1750mm
Equipment weight 1500Kg
Strong adaptability
  • With laser dry cutting & wet cutting & drilling & slotting and other fine machining capabilities
  • Supporting centripetal & vertical & compound opening feature machining for equal diameter tube & variable diameter tube & plane instrument
  • Can machine SS & hard alloy steel & Al & Cu & Ti etc. metal materials
  • Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping systems
  • Combined precision thin-walled tube axle sleeve support system with self-adaptive shape tolerance variation
  • Provide the matching scheme of precision thin-walled tube, continuous & automatic feeding machining, dry&wet cutting sealing receiver, dust removal pipeline system
  • Equipped with self-developed long & short focal length fine laser cutting head
  • Equipped with self-developed 2D&2.5D&3D CAM software system for laser micro-machining
Sample display

Ø 2.3mm stainless steel tube cutting

Ø 4.1mm stainless steel tube cutting

Stainless steel tube cutting

Stainless steel round tube cutting

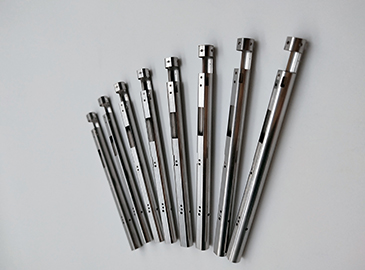

Cutting and forming of various metal pipes

Aluminum square electronic smoke tube

Aluminum round electronic smoke tube

Intelligent touch pen tube cutting

Flexible design
  • Follow the design concept of ergonomics, delicate and concise
  • Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
  • Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
  • The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
  • Support forward innovative design from component level to system level
  • Open type control & laser micromachining software system is easy to operate & intuitive interface
