Five-axis Laser Cutting Machine for Precision Thin-wall Tube ML-MDE500

Laser micromachining of precision thin-walled metal tubes such as medical flexible Hypo tube, spiral tube and spring tube

18~30um

≤ ±10um

smooth incision & heat affected zone & less burr

one time cutting through one side of the tube wall, continuous & automatic feeding machining

Spread the love

Maximum operating speed	300mm/s(X1) ；100mm/s(X2) ；50mm/s(Y) ；50mm/s(Z)； 600rpm(θ）
Positioning accuracy	±3um (XI); ±5um (X2);±3um (Y); ±3um (Z) ;±15arcsec (θ)
Repetitive positioning accuracy	±1um(X1) ；±3um(X2) ；±1um(Y) ； ±1um (Z) ； ±3arcsec (θ)
Cutting seam width	15um~30um
Machining material	SS & hard alloy steel & Al & Cu & Ti etc. metal materials
Tube blank length	<2.5m（Customizable support fixture compatible with infinite tube feeding）
Material wall thickness	0~1.0±0.02 mm
Tube machining range	Ø0.3~ Ø7.5& Ø0.1~ Ø16.0& Ø1.0~ Ø40.0±0.03mm
Machining range	0〜300mm (Longer products can be machined by segmented splicing)
Length of tailing	60mm
Laser type	Fiber Laser
Laser wavelength	1030-1070±10nm;
Laser power	Optional 200W & 300W & 500W & 1000W& QCW150W
Equipment power supply	220V± 10%, 50Hz；AC 20A (main circuit breaker)
File format	DXF、DWG
Equipment dimensions	1600mmx950mmx1750mm
Equipment weight	1500Kg

With laser dry cutting & wet cutting & drilling & slotting and other fine machining capabilities
Supporting centripetal & vertical & compound opening feature machining for equal diameter tube & variable diameter tube & plane instrument
Can machine SS & hard alloy steel & Al & Cu & Ti etc. metal materials
Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping systems
Combined precision thin-walled tube axle sleeve support system with self-adaptive shape tolerance variation
Provide the matching scheme of precision thin-walled tube, continuous & automatic feeding machining, dry&wet cutting sealing receiver, dust removal pipeline system
Equipped with self-developed long & short focal length fine laser cutting head
Equipped with self-developed 2D&2.5D&3D CAM software system for laser micro-machining

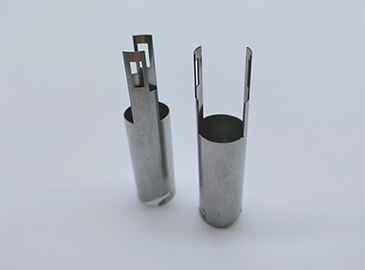

Ø 2.3mm stainless steel tube cutting

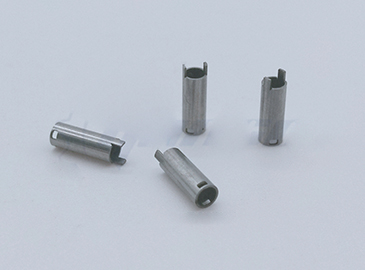

Ø 4.1mm stainless steel tube cutting

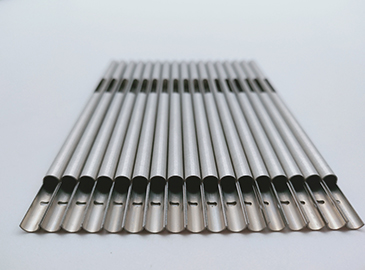

Stainless steel tube cutting

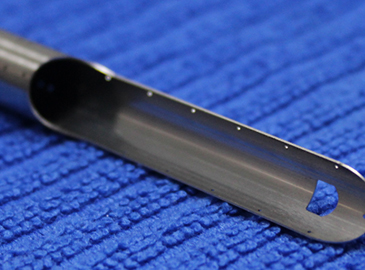

Stainless steel round tube cutting

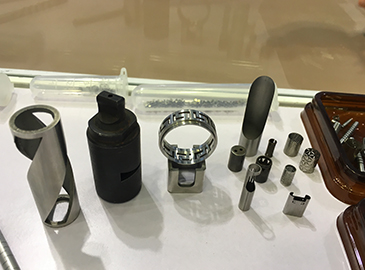

Cutting and forming of various metal pipes

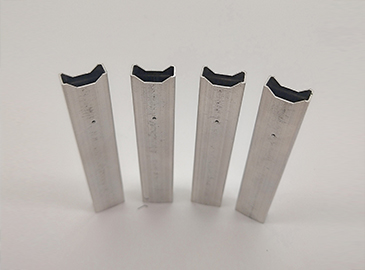

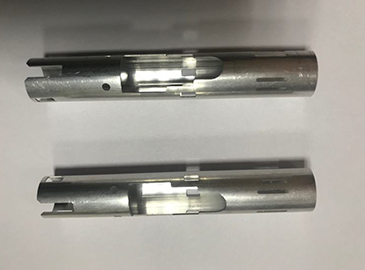

Aluminum square electronic smoke tube

Aluminum round electronic smoke tube

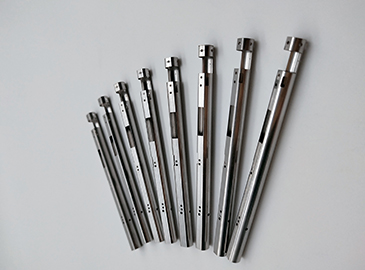

Intelligent touch pen tube cutting

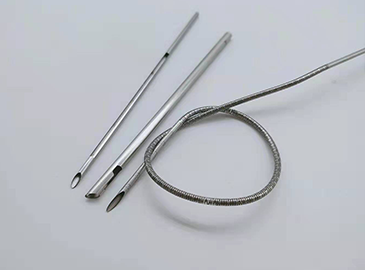

Laser cutting and forming of medical needle tube

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
