Endoscope Bending Section Laser Cutting Machine ETLC8

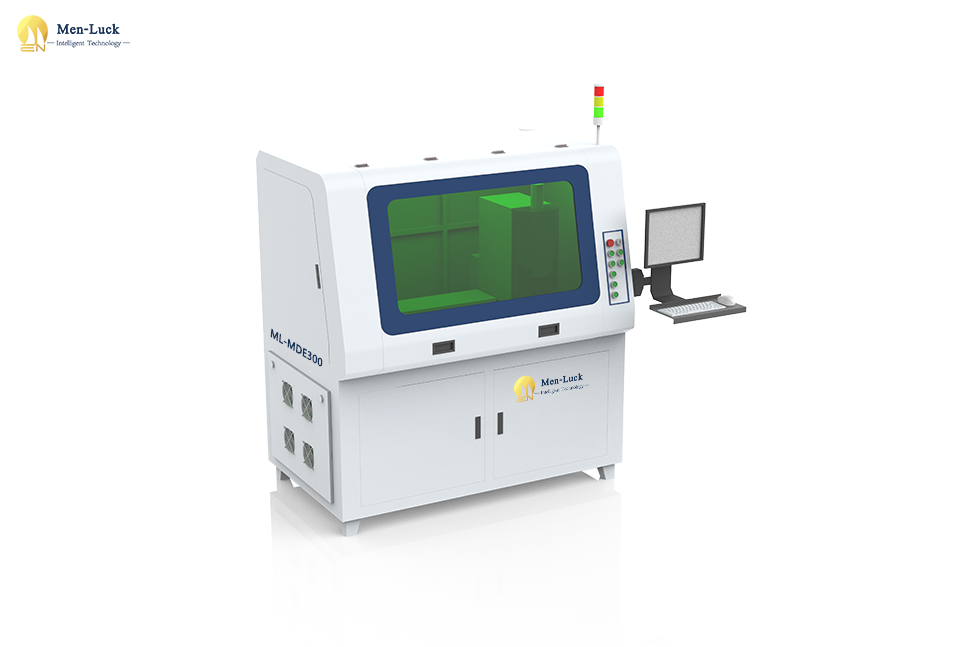

Endoscope Bending Section Laser Cutting Machine ML-MDE300

Application

Laser micromachining of
bending section for urology endoscope & choledocho endoscope & gastroentero endoscope & anorectal endoscope and other medical endoscope, industrial endoscope and electronic endoscope

High Precision Machining

Small cutting seam width :

15~30um

High machining accuracy :

≤±10um

Good quality of incision :

no burr & smooth incision

High machining efficiency :

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love

Equipment parameters

Processing wall thickness0~1.0±0.02mm

Maximum operating speed	300mm/s（X）； 50mm/s（Z）；600rpm(θ)
Positioning accuracy	±3um（X）；±3um（Z）；±15arcsec（θ）
Repetitive positioning accuracy	±1um（X）； ±1um（Z）；±3arcsec（θ）
Cutting seam width	20um~30um
Machining material	304、316L、Ni-Ti、L605 etc.
Tube blank length	< 2.5m (the customized support fixture is compatible with the feeding of infinite length tube material);
Processing tube diameter	Φ0.3~Φ7.5Φ1.0~Φ16.0±0.02mm
processing range	0～300mm (longer products will be machined by segmented splicing method);
Length of surplus material	60nm
Laser type	Infrared green femtosecond laser
Laser wavelength	1030-1070±10nm
laser power	100W&200W&300W&500W for option
Equipment power supply	220V± 10%, 50Hz；AC 25A (main circuit breaker);
File format	DXF、DWG
Equipment dimensions	1200mmx1300mmx1700mm
Equipment weight	1200Kg

Strong adaptability

Have the ability of laser dry cutting & wet cutting & drilling & slotting and other fine machining technology
Support machining of radial opening feature of equal diameter tube
Can machine 304 & 316L & Ni-Ti & L605 etc. materials
Can aachine equal diameter tube & deformed tube & semi-finished tube &small format plane instrument
Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
Provide the matching scheme of precision thin-walled tube continuous automatic feed machining & automatic loading and unloading
Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

Sample display

Ni-Ti Φ16 mm-L1200mm urology endoscope bending section

SUS304 Φ2.8mm-L700mm disposable urological endoscope bending section

SUS304 Φ5.0 mm-L120 mm anoscope bending section

SUS304 Φ9.7mm-L90mm canorectal endoscope bending section

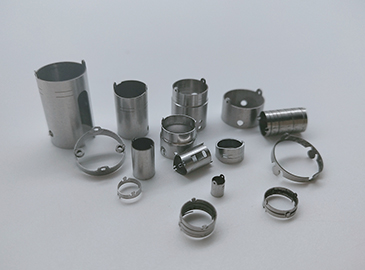

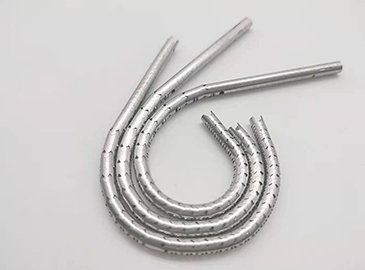

SUS304 bending section joint

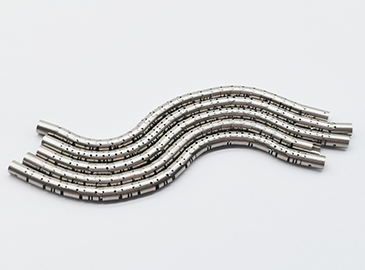

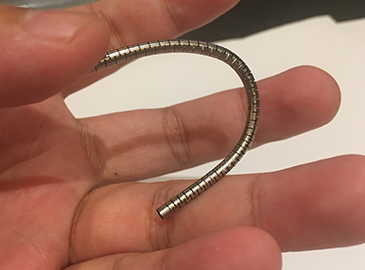

Φ2.4 SUS304 disposable uroscope bending section

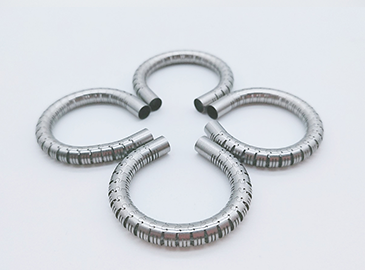

Φ4.5mm disposable choledochoscope bending section

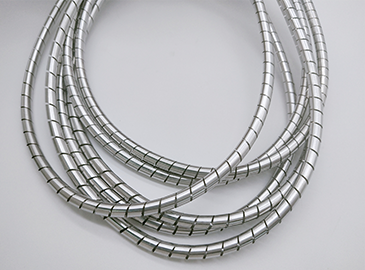

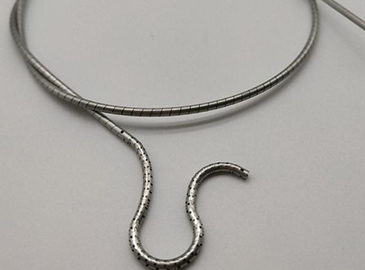

Precision metal flexible tube laser cutting forming

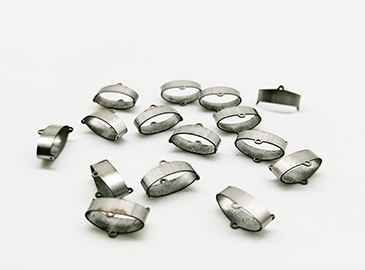

Endoscopic elliptic nodal ring of bending section

Flexible design

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
