CO2 Laser Cutting Machine for Electronic Instruments ML-EC3030

Laser micromachining of precision medical and electronic instruments
such as biological tissue film & 3C plastic structure part & cloth

≤ 80um

≤ ± 30um

no burr & smooth cut

adopt direct-drive moving gantry precision motion platform, cut through single layer wall thickness at one time

Spread the love

Equipment weight1500Kg

Maximum operating speed	500mm/s（X）；500mm/s（Y1&Y2）；30mm/s（Z）
Positioning accuracy	±3um (X) ±3um (Y1&Y2) ；±5um (Z)
Repetitive positioning accuracy	500mm（X）；500mm（Y1&Y2）；100mm（Z）
Equipment travel	steel & Aluminum & magnesium aluminum & Copper & Molybdenum & Nicke & Titanium & Powder Metallurgy & Ceramics & Sapphire
Positioning accuracy	±10um（X）±10um（Y1&Y2）；±10um（Z）

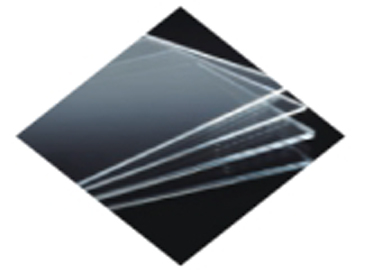

Machining material	non metallic materials, such as bio film & plastic & rubber & epoxy resin & Machining material Acrylic & wool & wood & bamboo products & paper, etc.
Material wall thickness	0~2±0.05 mm
Plane machining range	300mm*300mm
Laser type	CO2 Laser
Laser wavelength	9.3um&10.3um&10.6um for option
laser power	80W & 120W& 200W& 300W for option
Equipment power supply	220V±10%, 50Hz；AC 20A (main circuit breaker);
File format	DXF、DWG
Dimensions	1300mm1280mm1680mm

With fine machining technology capabilities of laser cutting, drilling and slotting for planar and curved surface instruments
Can process Al & Cu & W & Mo & Ni & Ti & Zn & Mg & Magnet & Silicon Steel & Powder Metallurgy and other materials
Equipped with a self-developed direct drive mobile double drive precision movement platform, granite platform, aluminum alloy and granite beam for selection
Provide the optional functions of double station & Visual Positioning & automatic feeding and unloading system & dynamic monitoring of machining
Equipped with self-developed long / short focal length sharp nozzle & flat nozzle fine laser cutting head
Equipped with modular material receiving and dedusting piping system

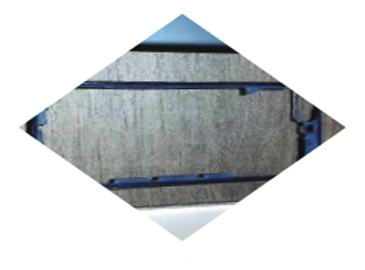

Provide self-developed movable tension frame & fixed tension frame & vacuum adsorption & honeycomb plate etc. optional fixture
Equipped with self-developed 2D &2.5D&3D CAM software system for laser micro-machining

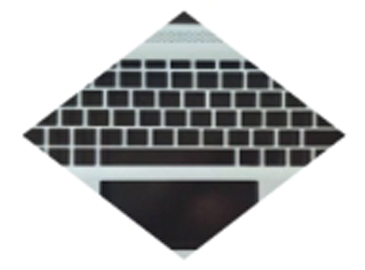

Laptop ABS shell cooling
hole cutting & perforating

Mobile phone (PC + glass fiber)
shell cutting & perforating

Leather cutting and shaping

Follow the design concept of ergonomics, delicate and concise
The combination of software and hardware functions is flexible, supporting personalized function configuration and intelligent production management
Support positive innovation design from component level to system level
Open control & laser micromachining software system easy to operate & intuitive interface
