Automatic laser cutting machine for medical spiral tube ML-MDE300

Application

Laser micromachining of precision thin-walled metal tubes such as medical flexible Hypo tube, spiral tube and spring tube

High Precision Machining
Small cutting seam width :

15~30um

High machining accuracy :

≤ ±5um

Good quality of incision :

no burr & smooth incision

High machining efficiency :

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love
Equipment parameters
Maximum operating speed 300mm/s(X);600rpm(θ);100mm/s(Z)
Positioning accuracy ±2um(X);±15arcsec(θ);±3um(Z)
Repetitive positioning accuracy ±0.5um(X);±3arcsec(θ);±1um(Z)
Cutting seam width 15um~30um
Machining material 304、316L、Ni-Ti、L605 etc.
Tube blank length <2.5m
Processing wall thickness 0~0.5±0.02 mm
Processing tube diameter Φ0.1~Φ7.5±0.02mm&Φ0.3~Φ16.0±0.02mm
Single processing range 0~300 mm (longer products can be processed by segmented splicing method);
Laser type Fiber laser
Laser wavelength 1030-1070±10nm
laser power 100W&200W&250W&500W for option
Equipment power supply 220V± 10%, 50Hz;AC 20A (main circuit breaker)
File format DXF、DWG
Equipment dimensions 1600mmx950mmx1750mm
Equipment weight 1500Kg
Strong adaptability
  • Laser cutting & drilling & slotting fine machining capability with concentric opening characteristics of equal diameter tube
  • Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
  • Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
  • Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
  • Provide the matching scheme of precision thin-walled tube continuous automatic feed processing & automatic loading and unloading
  • Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining
Sample display

Precision metal flexible tube laser cutting forming-1

Stainless steel tube forming laser cutting

Φ1.6mm stainless steel pipe forming

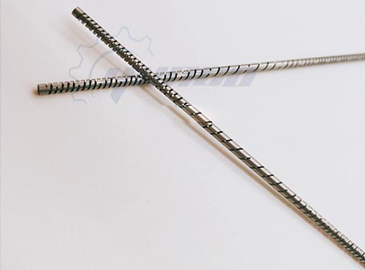

Φ Spiral and tongue structure of 0.65mm sea wave tube

Φ 2.5mm stainless steel pipe forming

Φ 6.8mm stainless steel pipe forming

Flexible design
  • Follow the design concept of ergonomics, delicate and concise
  • Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
  • Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
  • The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
  • Support forward innovative design from component level to system level
  • Open type control & laser micromachining software system is easy to operate & intuitive interface
