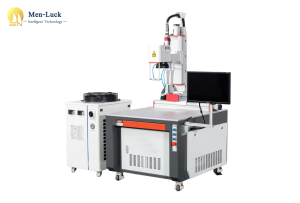

Automatic laser cutting machine for medical spiral tube ML-MDE300

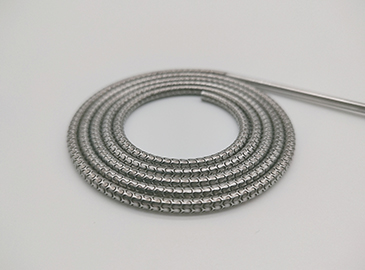

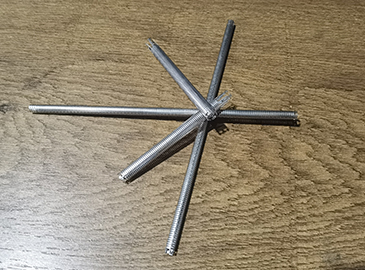

Laser micromachining of precision thin-walled metal tubes such as medical flexible Hypo tube, spiral tube and spring tube

15~30um

≤ ±5um

no burr & smooth incision

one-off cutting through one side tube wall & continuous automatic feed machining

Spread the love

Maximum operating speed	300mm/s（X）；600rpm（θ）；100mm/s（Z）
Positioning accuracy	±2um（X）；±15arcsec（θ）；±3um（Z）
Repetitive positioning accuracy	±0.5um（X）；±3arcsec（θ）；±1um（Z）
Cutting seam width	15um~30um
Machining material	304、316L、Ni-Ti、L605 etc.
Tube blank length	<2.5m
Processing wall thickness	0~0.5±0.02 mm
Processing tube diameter	Φ0.1~Φ7.5±0.02mm&Φ0.3~Φ16.0±0.02mm
Single processing range	0～300 mm (longer products can be processed by segmented splicing method);
Laser type	Fiber laser
Laser wavelength	1030-1070±10nm
laser power	100W&200W&250W&500W for option
Equipment power supply	220V± 10%, 50Hz；AC 20A (main circuit breaker)
File format	DXF、DWG
Equipment dimensions	1600mmx950mmx1750mm
Equipment weight	1500Kg

Laser cutting & drilling & slotting fine machining capability with concentric opening characteristics of equal diameter tube
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Compatible with precision D-type chuck & ER series chuck & three-jaw chuck and other precision thin-walled tube clamping system
Adopt the combined precision thin-walled tube shaft sleeve support system with self-adaptive shape tolerance variation
Provide the matching scheme of precision thin-walled tube continuous automatic feed processing & automatic loading and unloading
Equipped with self-developed 2D & 2.5D & 3D CAM software system for laser micromachining

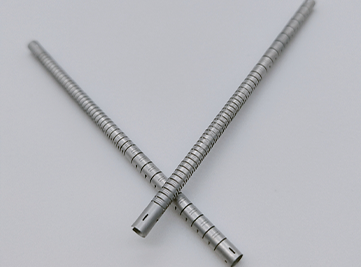

Precision metal flexible tube laser cutting forming-1

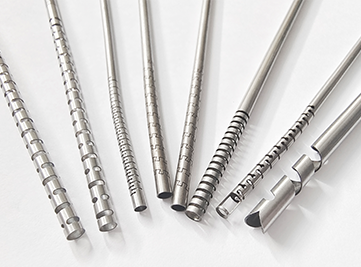

Stainless steel tube forming laser cutting

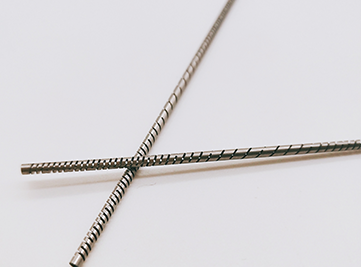

Φ1.6mm stainless steel pipe forming

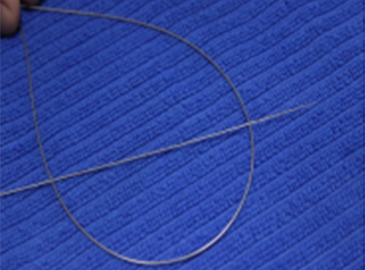

Φ Spiral and tongue structure of 0.65mm sea wave tube

Φ 2.5mm stainless steel pipe forming

Φ 6.8mm stainless steel pipe forming

Follow the design concept of ergonomics, delicate and concise
Can process 304 & 316L & Ni-Ti & L605 and other alloy materials
Provide the optional function of machine vision system to real time online monitor the laser dynamic machining process
The software and hardware functions match flexibly, support personalized function configuration & intelligent production management
Support forward innovative design from component level to system level
Open type control & laser micromachining software system is easy to operate & intuitive interface
