Is There A Laser Cutter That Can Cut Gold?

(Click 941 )

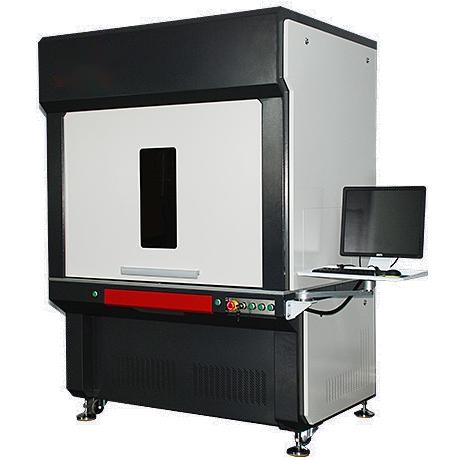

Laser Cutting Machine For Gold

Is there a laser cutter that can cut gold?

Yes, of course there is. A customer from the Middle East asked us such a question recently, so I would recommend a laser cutting machine that can cut metal highly reflective materials. Highly recommend this gold laser cutting machine, with high cutting precision, no burrs, and smooth cuts!

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China

At present, our company’s leading laser cutting products include: PCB laser cutting machine, magnetic material cutting machine, craft gift glasses frame cutting machine, laser silver cutting machine and other industrial laser equipment, and provide customers with various specifications of laser applications and automation supporting equipment Overall solution. If you want to know more, please contact us now!

The technical advantages of this laser cutting machine are as follows:

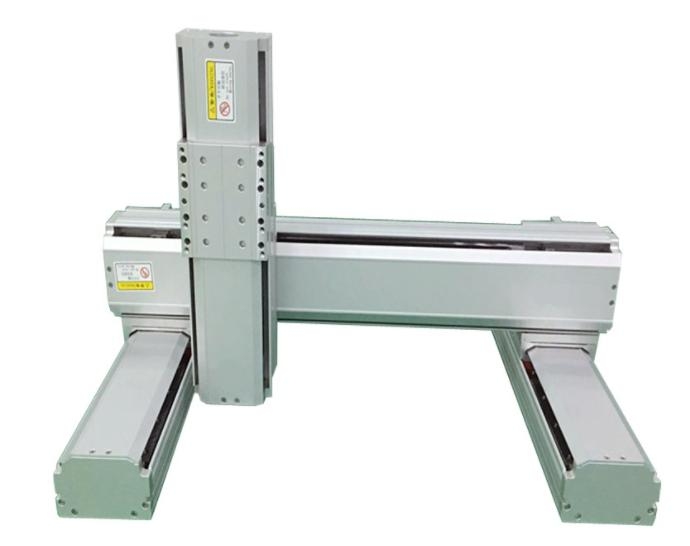

1. High-precision gantry screw, stable and reliable operation, good positioning accuracy, suitable for long-term processing.

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China

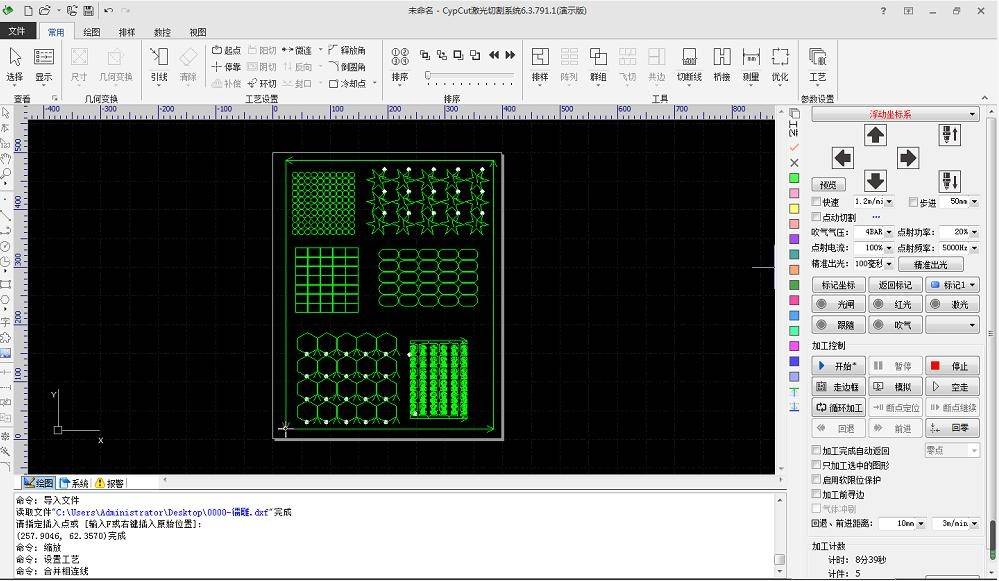

2. Using general software, the cutting path is automatically optimized, reducing the difficulty of use, compatible with a variety of file formats dxf, Gerber, etc.

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China

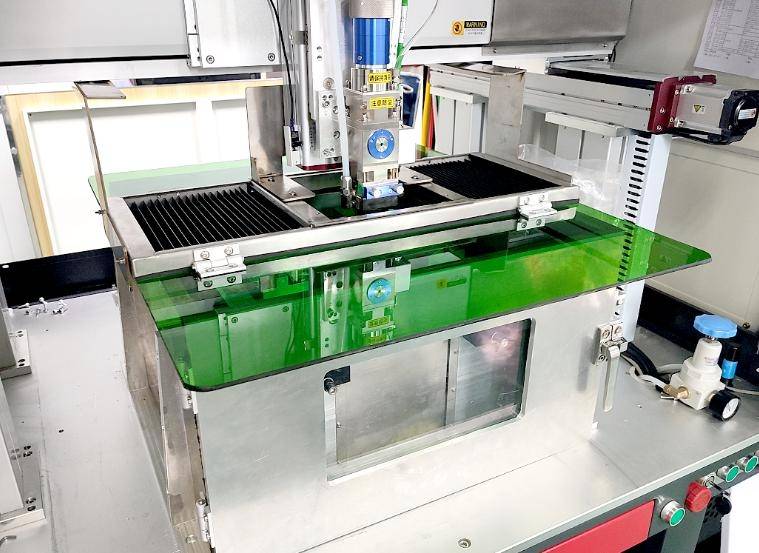

3. Professionally designed recycling system, the precious metal cutting and recycling efficiency is as high as 99%, minimizing customer cost consumption, fully sealed structure design, stable operation and no pollution.

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China
4. The equipment adopts the laser customized by our company, anti-high-reflection laser.

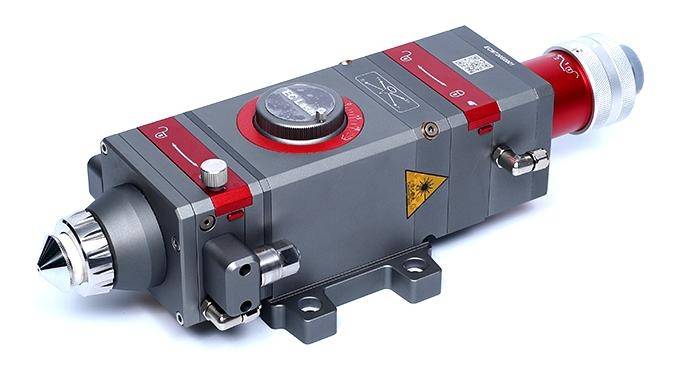

5. The equipment adopts the laser head customized by our company, and the parameters of the laser head are adjusted to achieve the optimal plan for cutting high-reflection materials.

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China

Industry application:

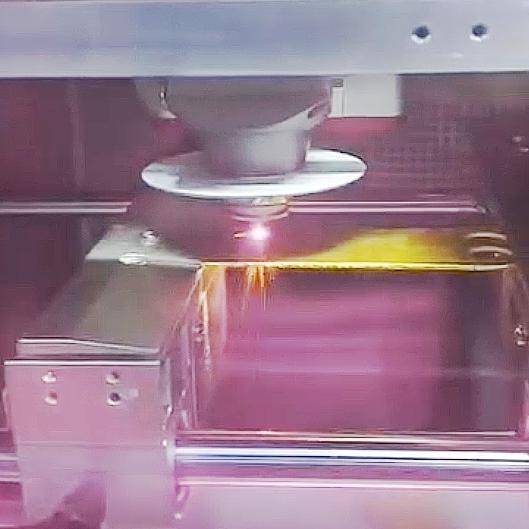

1.Long-term stable cutting of gold and silver and other precious metal workpieces with a thickness of less than 3mm, the cutting seam is fine and smooth, using suitable auxiliary gas, and does not require secondary polishing.

2.Adopt advanced fiber laser, core components, high stability, long life, few consumables and simple maintenance.

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China

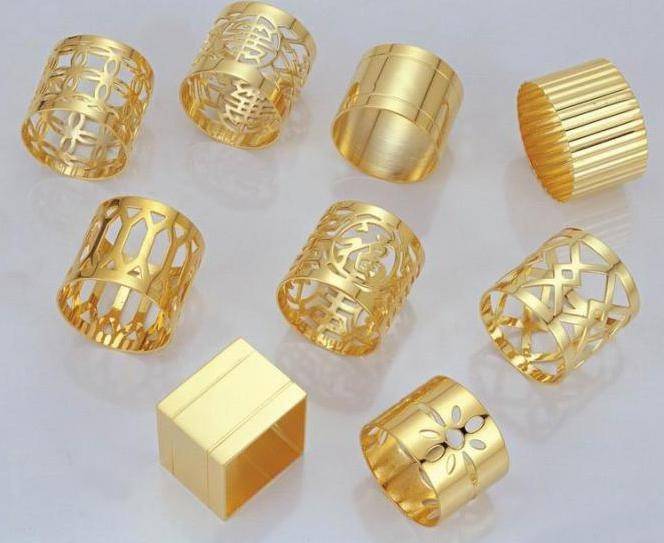

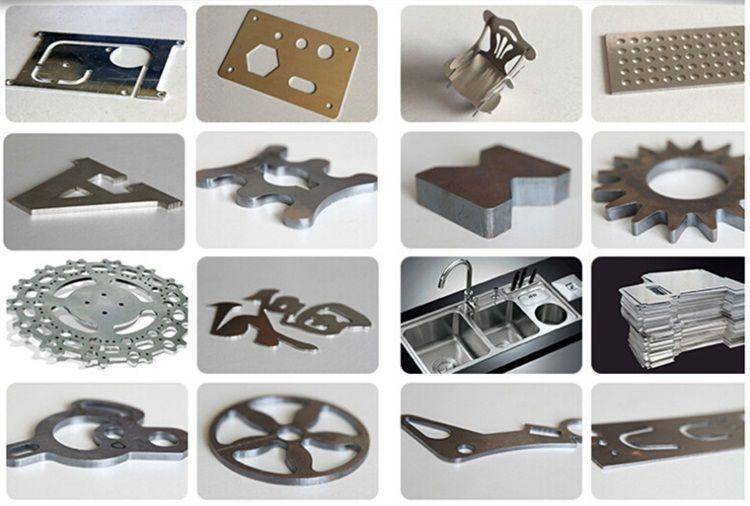

Cutting sample display:

Is There A Laser Cutter That Can Cut Gold?-stent cutting,laser stent cutter,Menlaser is medical stent,coronary stent,heart stent cutting machine from China

Laser cutting machine equipment technical parameters

  1. Maximum laser power: 1500W 2000W
  2. Laser wavelength: 1064nm
  3. Maximum idle speed: 250m/s
  4. Cutting speed: according to material thickness
  5. Long-term recommended maximum cutting thickness: ≤3mm (gold)
  6. Minimum line width: 0.05-0.15mm
  7. X/Y axis positioning accuracy: ±0.03mm
  8. X, Y axis repeat positioning accuracy: ±0.03mm
  9. Processing range: 300mm×300mm
  10. Cutting System: CypCut Laser Cutting System
  11. File format used: common formats such as DXF or cdr
  12. Air supply conditions: less than 2.5MPa
  13. Machine weight: less than 1200KG
  14. Use environment: room temperature is lower than 35 ℃, dry environment without oil, water and dust, ventilation
